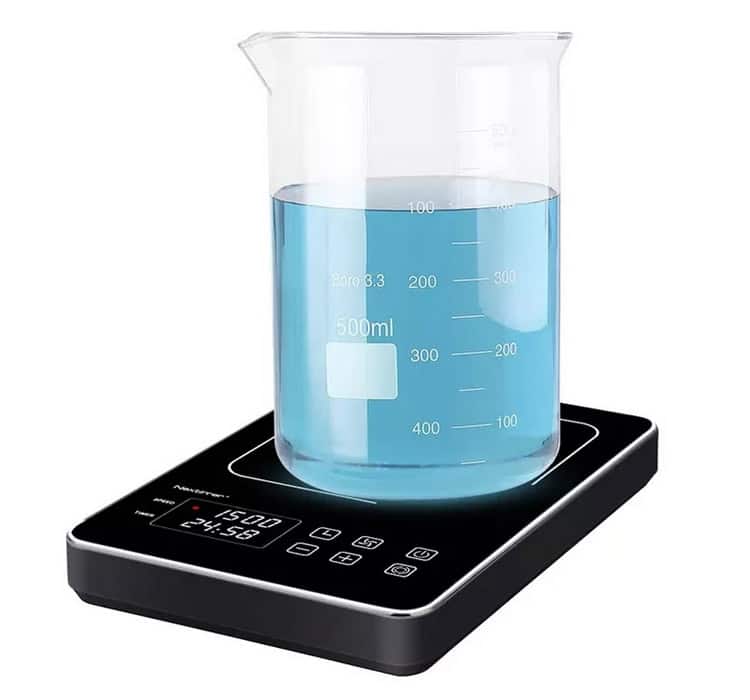

5 Inch Magnetic Stirrer with Glass Top And LED Display
The Pinnacle Laboratory Stirrer is a state-of-the-art lab equipment designed to offer precise and efficient stirring. It is ideal for a variety of laboratory applications due to its impressive features.
Key Features:
- Cutting-Edge Design: The Pinnacle Laboratory Stirrer features a modern, compact, and lightweight design, making it a perfect addition to any laboratory.
- Durable and Reliable: Equipped with a 5-inch tempered glass setup plate and an electromagnetic drive, this lab stirrer ensures durability and reliability.
- High Stirring Quantity: It boasts a maximum stirring quantity of up to 5000mL, catering to diverse laboratory needs.
- Wide Speed Range: The stirrer offers a speed range of 50-1500, providing versatility for various lab procedures.
- LED Displays: The LED speed and time displays facilitate easy monitoring and adjustment of settings, enhancing user convenience.
- Automatic Reverse Rotation: This feature ensures excellent mixing performance by automatically reversing rotation every 30 seconds.
In summary, the Pinnacle Laboratory Stirrer is not just a piece of lab equipment; it’s a game-changer in the world of laboratory stirring. Its superior features and compact design make it a must-have for labs aiming for precision and efficiency.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
Set-up Plate Dimensions | 5 Inch |
---|---|
Set-up Plate Material | Tempered Glass |
Stirring Mechanism | Electromagnetic Drive |
Max. Stirring Quantity [H₂O] | 5000mL (3000mL at 1500rpm) |
Speed Range | 50-1500 |
Speed Display | LED |
Time Display | LED |
Time Range | 0-99H99Min |
Permissible Ambient Temperature [°C] | 5 – 40 °C |
Permissible Relative Humidity | 80% |
Protection class according to DIN EN 60529 | IP65 |
Voltage [VAC] | 100-240 |
Frequency [Hz] | 50/60 |
Power [W] | 25 |
Dimensions | 172x247x30mm |
Weight [kg] | 1.627 |
- Pioneering and patented design of electromagnetism-driven mechanism.
- No concern about the mechanical wear and noise of the motor as the traditional design.
- No risk of demagnetization of the permanent magnet as the traditional design.
- Wear-free running provides longer life time.
- Tempered glass working plate is waterproof; strong acid and alkali resistant and very easy to clean.
- Touch key is more smart and user-friendly.
- Max stirring quantity (H2O) is 5000mL
- Wide speed range from 50 to 1500rpm
- LED display offers easy reading of the speed and time.
- Automatic reverse rotation every 30 seconds allows excellent mixing performance.
