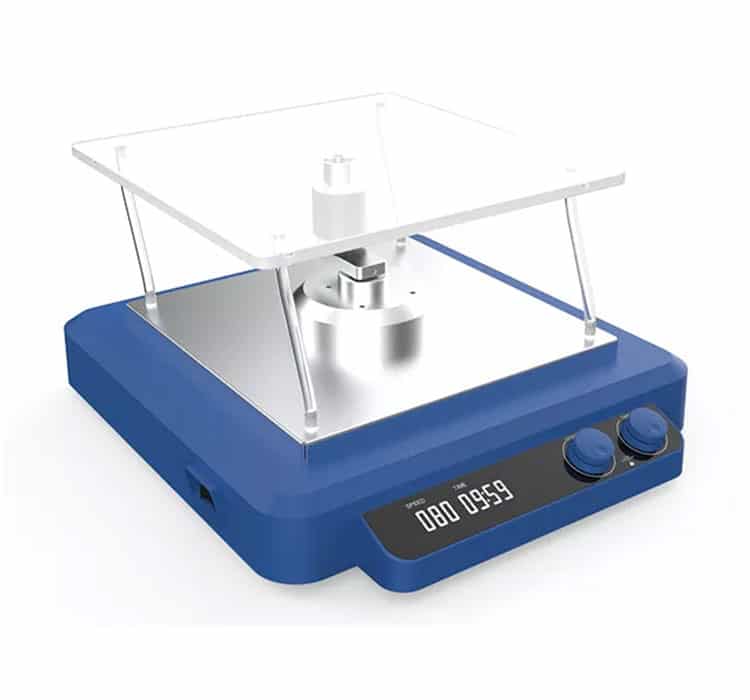

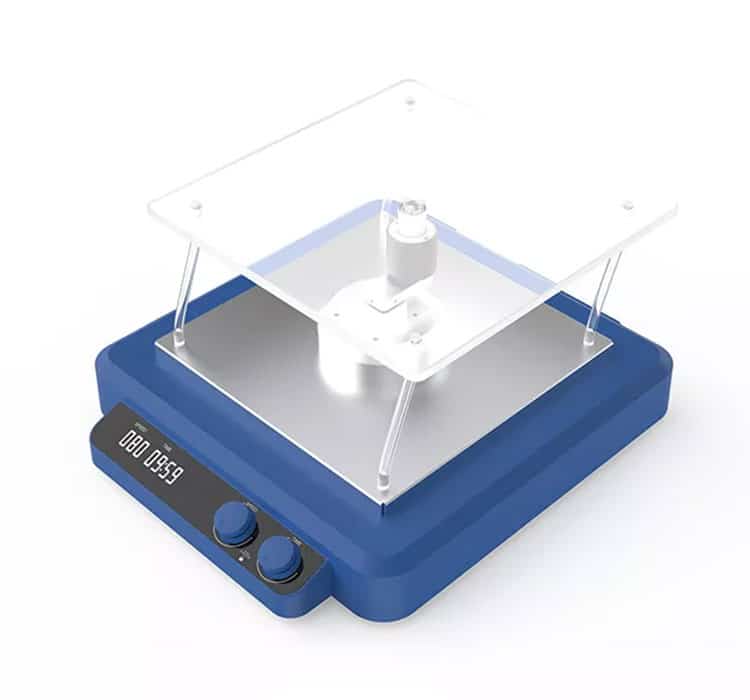

Digital 3D Rocker

The Pinnacle PC420 Laboratory Shaker is a premium choice for all your lab needs. It’s an ideal solution for molecular biology applications, offering a three-dimensional shaking motion. The compact size, combined with its no-slip mat, ensures easy usage.

Key Features:

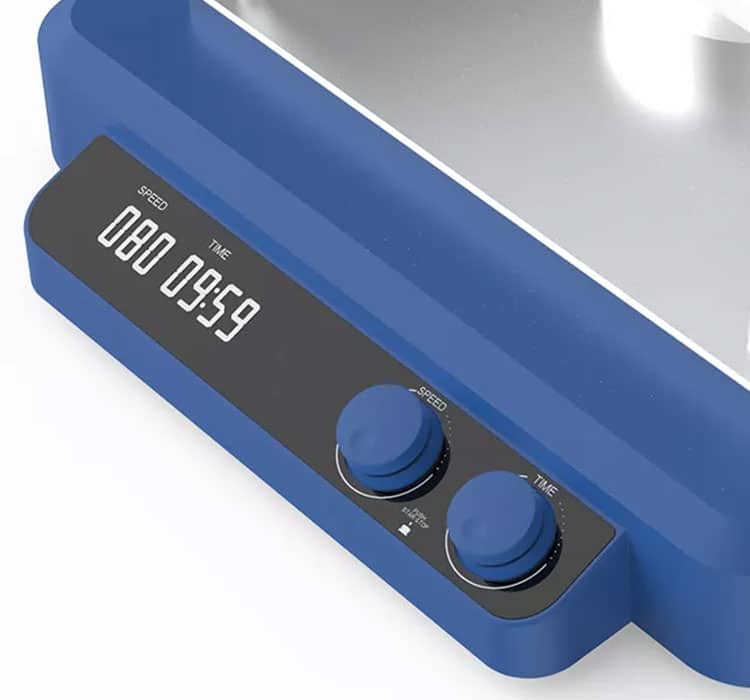

  • LED Displays: The PC420 comes equipped with LED displays for both speed and time, ensuring clear visibility and precise control.
  • Extended Operation Time: It offers continuous or timed operation up to 99H59min, catering to different experimental requirements.
  • Three-Dimensional Shaking Motion: The shaker delivers a three-dimensional shaking motion with an adjustable tilt angle, a feature much preferred for molecular biology applications.
  • High Load Capacity: Despite its compact size, it can handle a maximum load capacity of 5kg, making it a highly efficient lab tool.
  • Brushless DC Motor: The PC420 is powered by a brushless DC motor, ensuring longevity and reliable performance.
  • Protection Class IP42: With a protection class of IP42, the laboratory shaker is both durable and safe to use.

The Pinnacle PC420 Laboratory Shaker is not just a tool, but a reliable partner for your laboratory. Its superior features and durable construction make it a top choice for labs worldwide.

NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information



Shaking Motion

Three – dimensional shaking

Tilt angle [°]


Max. load capacity (with platform) [kg]


Motor Type

Brushless DC motor

Speed Range [rpm]


Speed Display


Time Display


Time Range [min]


Operation Type

Continuous / timing operation

Voltage [VAC]


Frequency [Hz]


Power [W]


Permissible ambient temperature [℃]


Permissible relative humidity [RH]


Protection class acc. to DIN EN60529


Dimension (L x W x H) [mm]


Weight [kg]


  • LED display for easy-reading of speed and time simultaneously
  • Continuous operation and timed operation in range of 0-99h59min are available
  • Undulating three-dimensional shaking motion, with 0°-8° adjustable tilt angle
  • Adjustable speed of 10–70rpm
  • Max. Load capacity (with platform) is 5KG
  • No-slip mat on the platform keeps the items in position during operation
  • Ideal for generating the three-dimensional motion commonly preferred for molecular biology applications.
