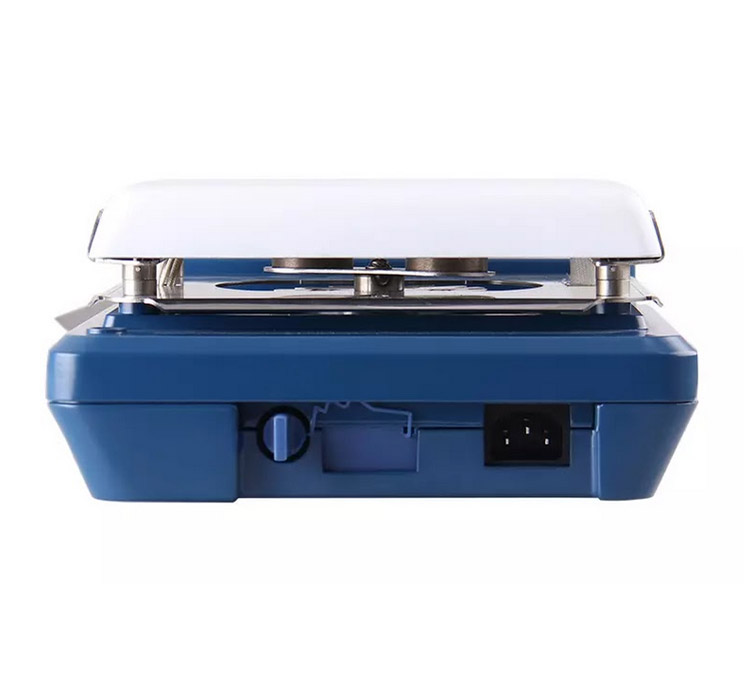

7 Inch LED Digital Magnetic Hotplate Stirrer

Introducing the Pinnacle Laboratory Stirrer Hotplate, an essential tool for any lab setting. This high-quality lab equipment boasts several key features designed for efficiency, safety, and longevity:

  • Powerful Motor: Equipped with a robust brushless DC motor, ensuring high performance and reliability.
  • Stainless Steel Setup Plate: The ceramic-coated, stainless steel setup plate measures 185 x 185mm, providing ample space for various lab applications.
  • High Capacity: This stirrer hotplate can handle up to 20L, making it suitable for larger experiments.
  • Variable Speed: Offers a wide speed range from 50-1500rpm, allowing for precise control over your stirring processes.
  • LED Display: Conveniently displays both speed and temperature, allowing for accurate monitoring.
  • High Heating Output: With a heating output of 1000W, it can rapidly achieve desired temperatures.
  • Wide Temperature Range: Can heat from room temperature up to 510°C, accommodating a variety of laboratory needs.
  • Safety Features: Includes a hot surface warning at 50°C and a safety temperature range of 50-550°C, ensuring user safety.
  • IP42 Protection Class: This feature guarantees durability and longevity, making it a cost-effective choice for any laboratory.

Enhance your lab’s efficiency and safety with the Pinnacle Laboratory Stirrer Hotplate, a reliable and durable addition to your scientific equipment.

NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information

Stirring Positions


Set-up Plate Dimensions [mm]

185 x 185

Set-up Plate Material

Stainless Steel with ceramic coated

Motor Type

Brushless DC motor

Max. Stirring Quantity [H₂O, L]


Max. Stirring Bar [ L x Φ , mm]

80 x Φ9.5

Motor Rating Input [W]


Motor Rating Output [W]


Speed Range [rpm]


Speed Display


Heating Output [W]


Heating Temperature Range

Room temp.-510

Temperature Display


Temperature Display Accuracy [°C]


Safety temperature [°C]


External Temperature Sensor


Control accuracy with external temperature sensor PT1000[°C]


Control accuracy with internal: temperature sensor PT1000[°C]


Hot Surface Warning


Time Display


Time Range


Dimensions [W x D x H, mm]

220 x 350 x 100

  • LED digital displays the target and actual speed and temperature
  • Independent digital wheels adjust the speed and temperature
  • Temperature is up to 510°C and the safety temperature is 50-580°C
  • PID controller provides rapid heating and ensures long-time continuous operation
  • Stainless steel with ceramic coated heating plate can be resistant to high temperature, impact, and thermal shock
  • Fully enclosed alloy casing provides high temperature resistance, excellent heat dissipation and its baking finish enhances the chemical resistance.
  • Powerful stirring performance supports large stirring quantities up to 20L (H2O) and ensures a stable running of 5L (H2O) with the Φ8.5*50mm stirring bar at the max. speed of 1500rpm
  • Double over-temperature protection by the hardware and software provides high safety and reliability
  • Hot surface warning at 50°C to prevent burns
  • Digital process timer allows for unsupervised operation and can be set from 0 to 99h59m
  • The external temperature sensor PT1000 enables precise control accuracy of ±1°C
