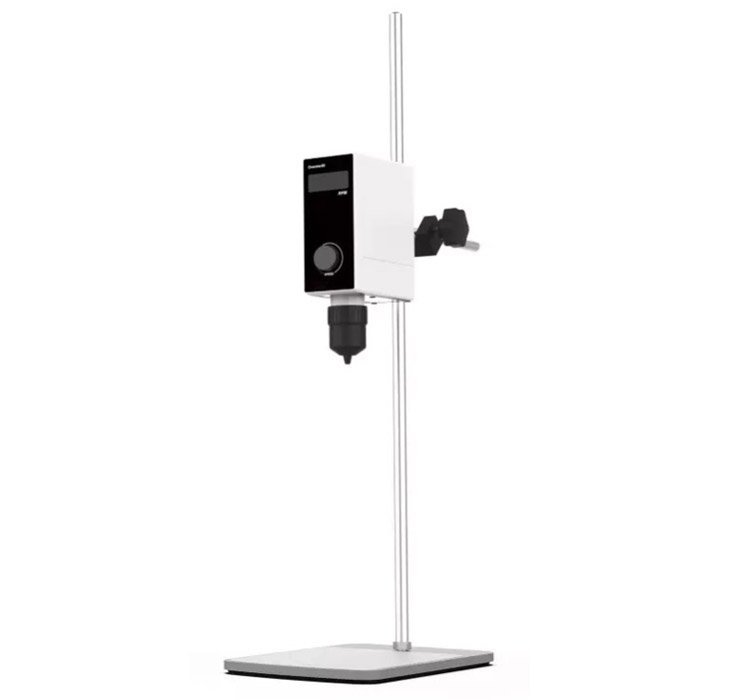

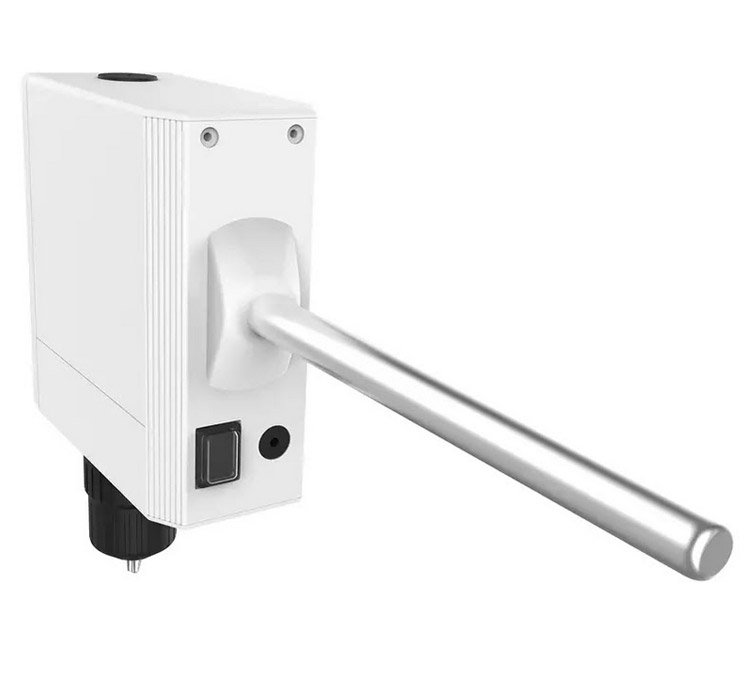

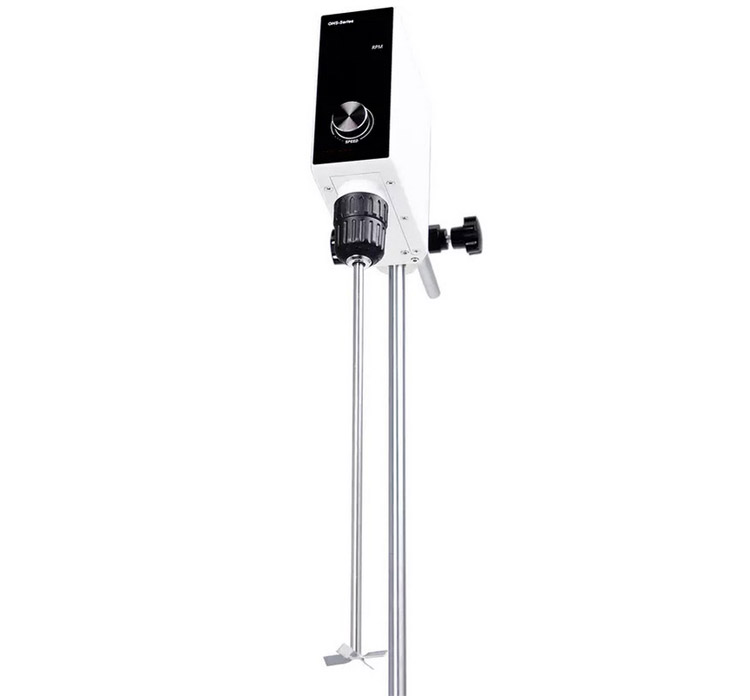

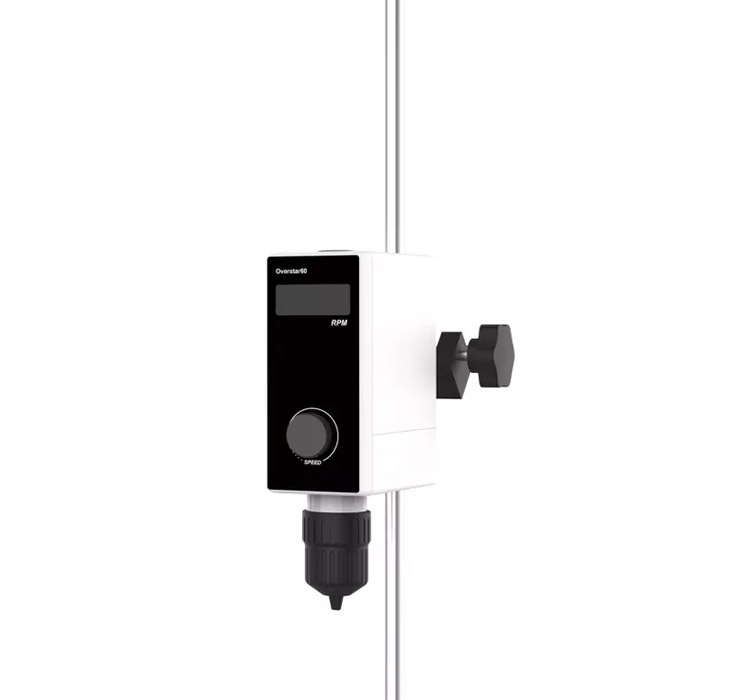

50L LED Digital Overhead Stirrer

The Pinnacle PC-60D Laboratory Stirrer is a powerful, versatile, and compact tool ideal for various laboratory applications. This stirrer stands out due to its impressive features, which include:

  • High Torque: With a maximum torque of 60 N·cm, the Pinnacle PC-60D stirrer can handle a wide range of tasks, ensuring consistent results even with changes in sample viscosity.
  • Large Stirring Quantity: It can stir up to 50L, making it a highly efficient tool for large-volume laboratory tasks.
  • LED Speed Display: The stirrer comes with an LED speed display for precise and accurate operation.
  • Overload/Motor Protection: This feature ensures the safety of the device and the operator, preventing any potential damage due to overload.
  • Compact & Lightweight Design: The Pinnacle PC-60D is easy to handle and store, making it a convenient tool for any laboratory.
  • IP42 Protection Class: This feature makes the stirrer resistant to dust and water, suitable for use in a variety of laboratory settings.
  • Permissible Ambient Temperature Range: With a permissible ambient temperature range of 5-40℃, this stirrer can perform optimally in a wide range of temperatures.

NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information

Model

OHS-60D

Max. torque [N·cm]

60

Speed Range [rpm]

50-2000

Viscosity Max. [mPas]

50,000 (2000 rpm)/ 100,000 (1000 rpm)

Chuck Diameter Range [mm]

0.5-10

Max. Stirring Quantity (H20)[L]

50

Voltage [V]

100-240

Frequency [Hz]

50/60

Speed Display

LED

Overload Protection

YES

Motor Protection

YES

Dimensions (D×W×H)[mm]

71×174×240

Weight [kg]

2.5kg

Protection class according to DIN EN60529

IP42

Permissible ambient temperature [°C]

5-40

Permissible relative humidity [%]

80

  • Speed Range: 50rpm~2000rpm
  • Provides constant speed even with changes in viscosities of the sample
  • Wide LED display for precise speed adjustment and monitoring
  • LED display shows actual and set speeds alternately
