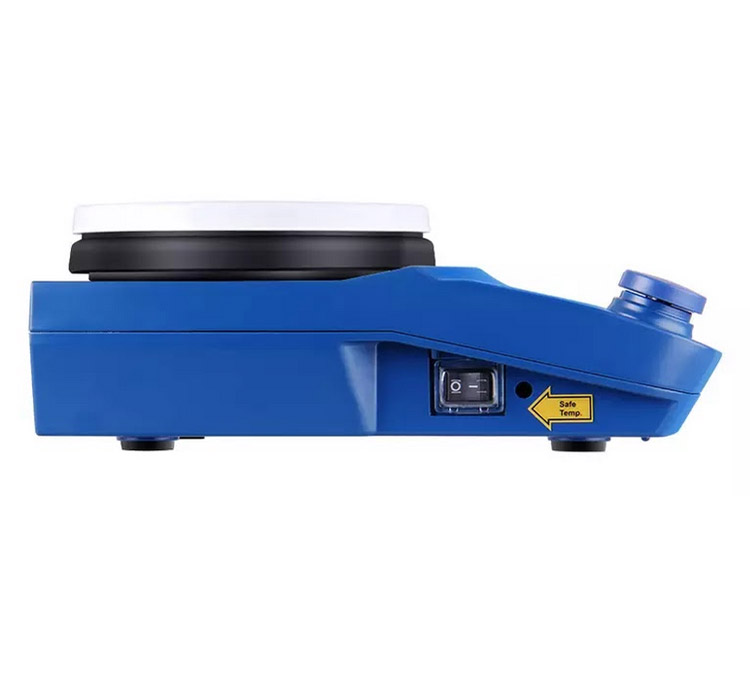

5 Inch LED Digital Magnetic Hotplate Stirrer
The Pinnacle laboratory magnetic stirrer is an ideal solution for numerous laboratory applications. Here are its key features:
- Powerful Performance: Equipped with a robust brushless DC motor, this stirrer can handle a maximum stirring quantity of up to 20L and offers a speed range of 50-1500rpm, ensuring efficient stirring performance.
- Accurate LED Display: The LED displays provide accurate readings for speed and temperature up to ±0.1°C, ensuring precise control over your laboratory procedures.
- Safety Features: The stirrer comes with a hot surface warning for safety. This feature ensures that the user is alerted when the surface becomes dangerously hot, reducing the risk of accidents.
- Durable and Easy to Clean: The stirrer features a stainless steel set-up plate, ceramic-coated for enhanced durability and ease of cleaning. This feature ensures longevity and maintains a hygienic laboratory environment.
- Enclosed Heating Plate Design: The design of the heating plate is enclosed, reducing the risk of liquid splashing into the equipment, thereby ensuring long-term functionality.
- High Heating Output: With a heating output of 600W and a temperature range of room temperature to 310°C, this stirrer offers a high level of safety and strong stirring performance, making it a reliable choice for various laboratory applications.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Stirring Positions | 1 |
|---|---|
| Set-up Plate Dimensions [mm] | Ø 135 |
| Set-up Plate Material | Stainless Steel with ceramic coated |
| Motor Type | Brushless DC motor |
| Max. Stirring Quantity [H₂O, L] | 20 |
| Max. Stirring Bar [ L x Φ , mm] | 55*10 |
| Motor Rating Input [W] | 30 |
| Motor Rating Output [W] | 20 |
| Speed Range [rpm] | 50-1500 |
| Speed Display | LED |
| Heating Output [W] | 600 |
| Heating Temperature Range | Room temp.-310°C |
| Temperature Display | LED |
| Temperature Display Accuracy | ±0.1 |
| Safety temperature [°C] | 50-320 |
| External Temperature Sensor | PT1000 |
| Control accuracy with external temperature sensor PT1000 [°C] | ±1 |
| Hot Surface Warning | 50°C |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP42 |
| Voltage [VAC] | 200-240/100-120 |
| Frequency [Hz] | 50/60 |
| Power [W] | 650 |
| Dimensions [W x D x H, mm] | 250 x 148 x 85 |
| Weight [kg] | 1.9 |
- LED digital display for easy reading
- Enclosed heating plate design reduces the risk of liquid splashing into the equipment
- 3D digital wheel adjustment of speed and temperature
- Temperature is up to 310°C and the safety temperature is 50-320°C
- Brushless DC motor is maintenance-free and explosion-proof
- Stainless Steel with ceramic coated heating plate allows for optimum heat transfer and easy to clean
- High safety and strong stirring performance
- Optimized PID program control provides extremely high accuracy of temperature and speed
- Hot surface warning to prevent burns
- Double internal temperature sensor PT1000 and one external PT1000
- Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode
