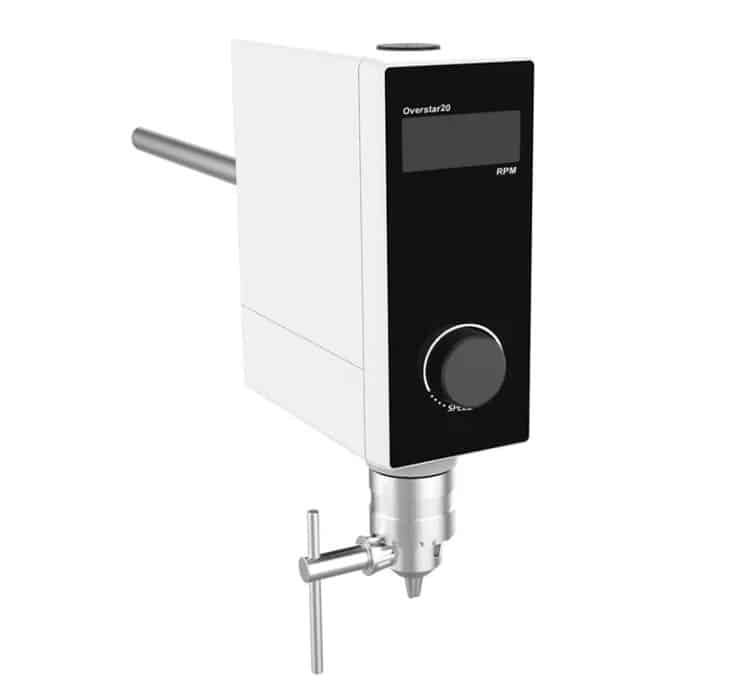

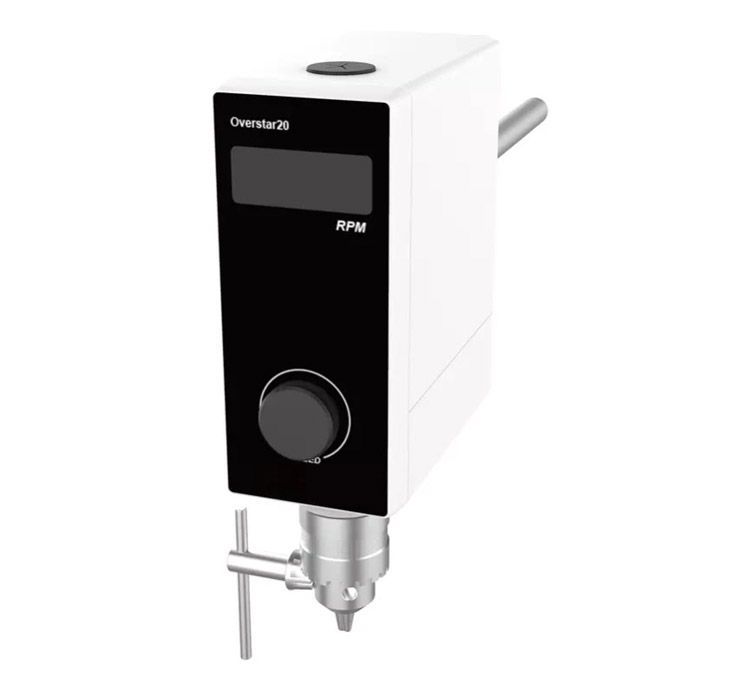

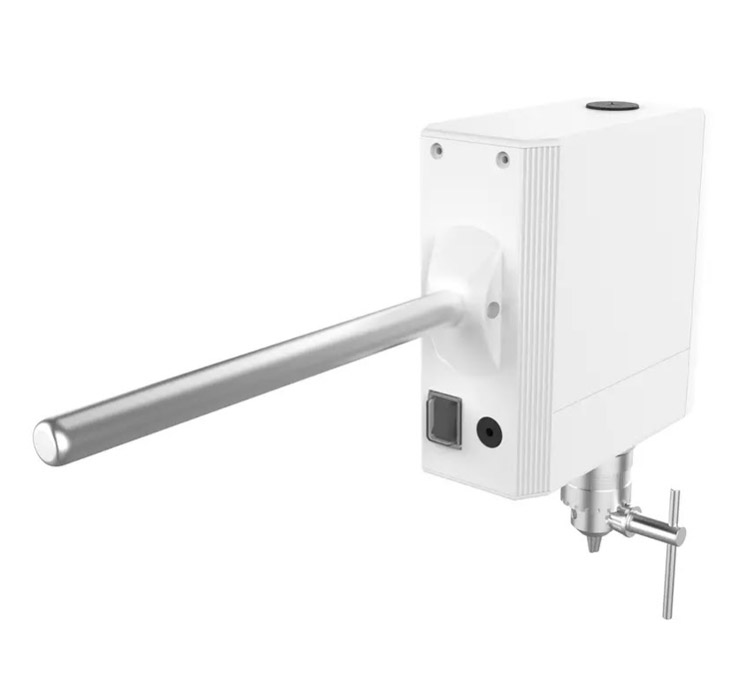

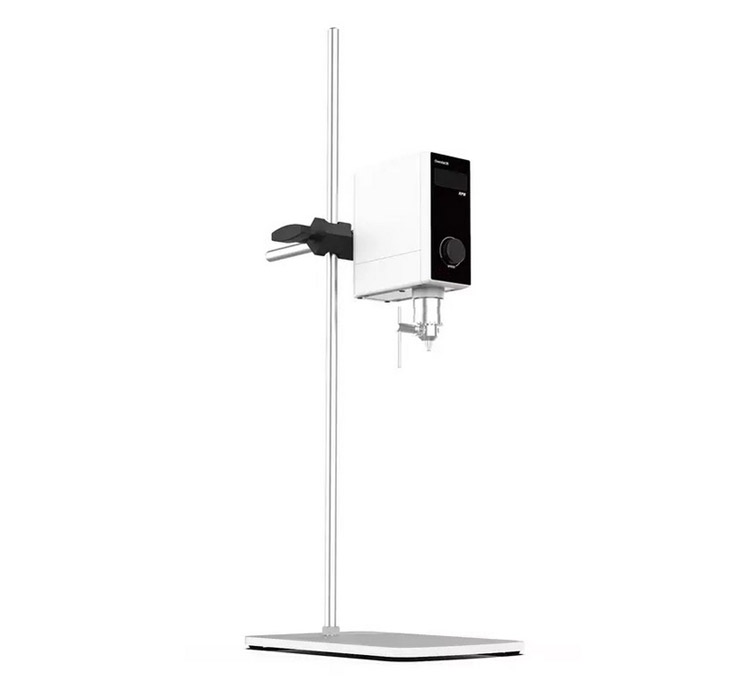

20L LED Digital Overhead Stirrer
The Pinnacle PC-20D Laboratory Stirrer is a high-performance, precision tool that is essential for any laboratory. This compact and lightweight stirrer is not only easy to use but also easy to store.
Key Features of Pinnacle PC-20D Laboratory Stirrer:
- Maximum torque of 20N·cm: This powerful stirrer can handle heavy-duty tasks efficiently.
- Speed range of 50-2000rpm: The broad speed range allows for versatile usage in different lab applications.
- Maximum viscosity of 10,000mPas: It can stir high-viscosity substances with ease.
- Stirring quantity of up to 20L of water: The stirrer can handle large volumes, making it ideal for large-scale experiments.
- LED speed display: This feature ensures accurate and precise control over the stirring speed.
- Overload protection and motor protection: These safety features ensure the stirrer operates within safe parameters, preventing any damage to the device.
- Voltage range of 100-240V and a frequency of 50/60Hz: The stirrer is adaptable to different power supplies, making it perfect for any laboratory setting.
The Pinnacle PC-20D Laboratory Stirrer is designed for efficient and safe operations, making it the perfect choice for your laboratory needs.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Model | OHS-20D |
|---|---|
| Max. torque [N·cm] | 20 |
| Speed Range [rpm] | 50-2000 |
| Viscosity Max. [mPas] | 10,000 |
| Chuck Diameter Range [mm] | 0.5-10 |
| Max. Stirring Quantity (H20)[L] | 20 |
| Voltage [V] | 100-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 65 |
| Speed Display | LED |
| Overload Protection | YES |
| Motor Protection | YES |
| Dimensions (D×W×H)[mm] | 71×160×192 |
| Weight [kg] | 2.3kg |
| Protection class according to DIN EN60529 | IP42 |
| Permissible ambient temperature [°C] | 5-40 |
| Permissible relative humidity [%] | 80 |
- Speed Range: 50rpm~2000rpm
- Provides constant speed even with changes in viscosities of the sample
- Wide LED display for precise speed adjustment and monitoring
- LED display shows actual and set speeds alternately
