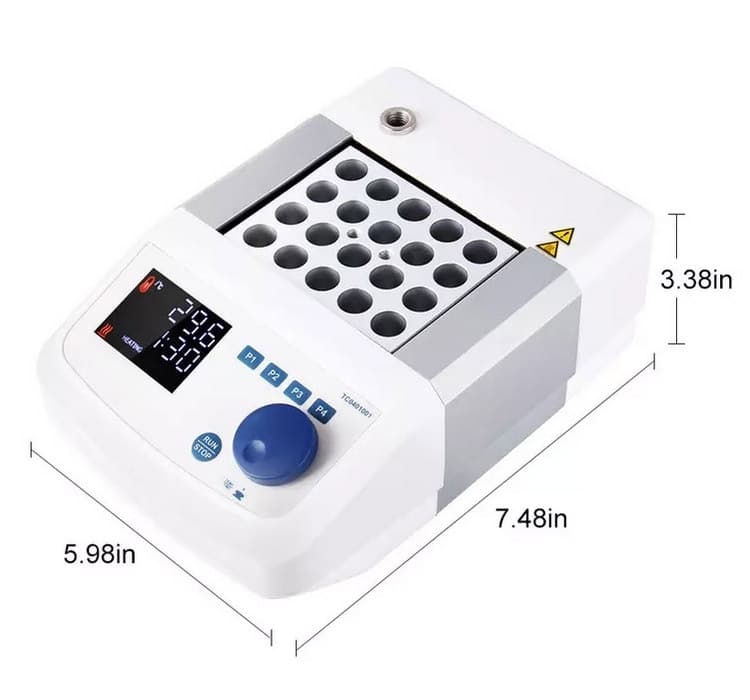

Dry Bath Incubator
The Pinnacle Laboratory Heating Block is a compact and lightweight tool ideal for time-sensitive experiments. It guarantees accurate and consistent results with its advanced features.
Key Features:
- Temperature Control: The heating block offers an adjustable temperature range from room temperature +5°C to 150°C. This wide range ensures the precise control needed for various experiments.
- Rapid Heating: With a heating rate of 5K/min, this equipment ensures quick and efficient heating, saving valuable time in time-sensitive experiments.
- LED Temperature Display: The LED display allows for easy monitoring of thetemperature, ensuring accuracy in all your experiments.
- Adjustable Timing Range: The timing range can be adjusted from 1 minute to 99 hours and 59 minutes, providing flexibility for a variety of experiments.
- Safety Circuit: The fixed safety circuit provides added protection, ensuring the safety of your experiments and equipment.
- Precision Heating: The machined aluminum heating unit allows for highly precise temperature control, ensuring consistent results.
- Inclusive Temperature Sensor: The equipment includes a PT1000 temperature sensor, which allows for direct temperature control in the sample vessel.
Incorporating these features into your laboratory setup will ensure precision, safety, and efficiency in your experiments. The Pinnacle Laboratory Heating Block is an essential tool for any modern laboratory.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Number of Blocks | 1 |
|---|---|
| Heat Output [W] | 165 |
| Heating temperature range [°C] | Room Temp.+5°C-150°C |
| Temperature Display | LED |
| Adjustment and Display Resolution [K] | 0.1 |
| Connection for Ext. Temperature Sensor | DIN 12 878 |
| PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
| Temperature stability within the blocks > 60°C * [±°C] | ±0.2 |
| Temperature Uniformity > 60°C * [K] | 0.2 |
| Heating rate / Heat up time with external sensor * [K/min] | 5 |
| Set-up Plate Material | Aluminum alloy |
| Set-up Plate Dimensions [mm] | 96×76 |
| Fixed safety circuit [°C] | 180 |
| Timer | √ |
| Time Setting Range | 1min – 99h59min |
| Dimensions (W x H x D) [mm] | 152 x 86 x 190 |
| Weight [kg] | 1.5 |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity | 80% |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage [V] | 200-240/115 |
| Frequency [Hz] | 50/60 |
| Power Input [W] | 165 |
- LED display for easy reading
- 3D digital wheel adjustment of Time and temperature
- Adjustable temperature is up to 150°C
- High temperature stability is up to ±0.2°C
- Machined aluminum heating unit allows for highly precise control of temperature
- Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
- Adjustable timing range of 1min to 99h59min
- Fixed safety circuit
- Error code display
- Various applications with different blocks
- Automatic calibration with external PT1000 temperature sensor
