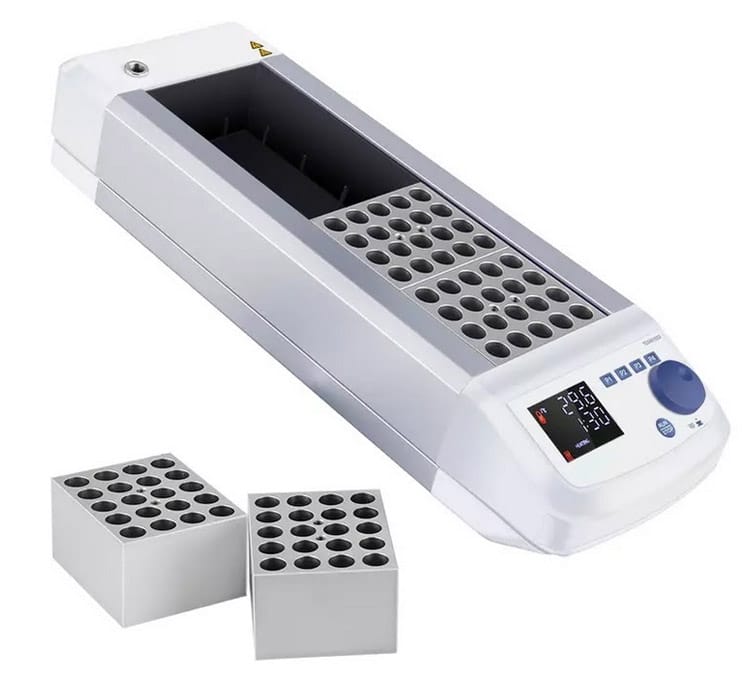

Dry Bath Incubator (for 4 blocks)
The Pinnacle laboratory heat block is an exceptional piece of equipment, offering high precision and power for a multitude of applications.
Key features:
- Powerful Heat Output: The heat block boasts a robust heat output of 430W, capable of handling demanding tasks.
- Wide Temperature Range: It operates within a temperature range from room temperature plus 5°C to 150°C, catering to a variety of needs.
- LED Temperature Display: The heat block comes with an LED temperature display for easy temperature monitoring.
- Adjustable Resolution: It features an adjustable resolution of 0.1K, allowing for precise temperature controls.
- External Sensor Connection: The unit has a connection for an external temperature sensor, providing further precision.
- Safety Features: Designed with safety in mind, it includes a fixed safety circuit and boasts a protection class of IP 21.
- PT1000 Temperature Sensor: The heat block includes a PT1000 temperature sensor for direct temperature control in the sample vessel.
- Adjustable Timing Range: It offers an adjustable timing range from 1 minute to 99 hours and 59 minutes, accommodating a wide range of experiments and procedures.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Number of Blocks | 4 |
|---|---|
| Heat Output [W] | 430 |
| Heating temperature range [°C] | Room Temp.+5°C-150°C |
| Temperature Display | LED |
| Adjustment and Display Resolution [K] | 0.1 |
| Connection for Ext. Temperature Sensor | DIN 12 878 |
| PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
| Temperature stability within the blocks > 60°C * [±°C] | ±0.5 |
| Temperature Uniformity > 60°C * [K] | 0.5 |
| Heating rate / Heat up time with external sensor * [K/min] | 4 |
| Set-up Plate Material | Aluminum alloy |
| Set-up Plate Dimensions [mm] | 96×304 |
| Fixed safety circuit [°C] | 180 |
| Timer | √ |
| Time Setting Range | 1min – 99h59min |
| Dimensions (W x H x D) [mm] | 152 x 86 x 465 |
| Weight [kg] | 7.5 |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity | 80% |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage [V] | 200-240/115 |
| Frequency [Hz] | 50/60 |
| Power Input [W] | 412 |
- LED display for easy reading
- 3D digital wheel adjustment of Time and temperature
- Adjustable temperature is up to 150°C
- High temperature stability is up to ±0.2°C
- Machined aluminum heating unit allows for highly precise control of temperature
- Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
- Adjustable timing range of 1min to 99h59min
- Fixed safety circuit
- Error code display
- Various applications with different blocks
- Automatic calibration with external PT1000 temperature sensor
