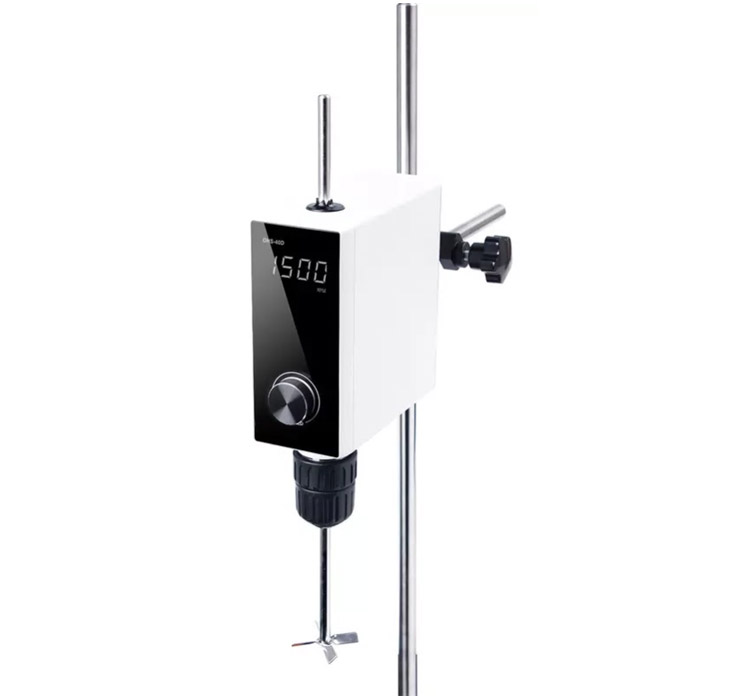

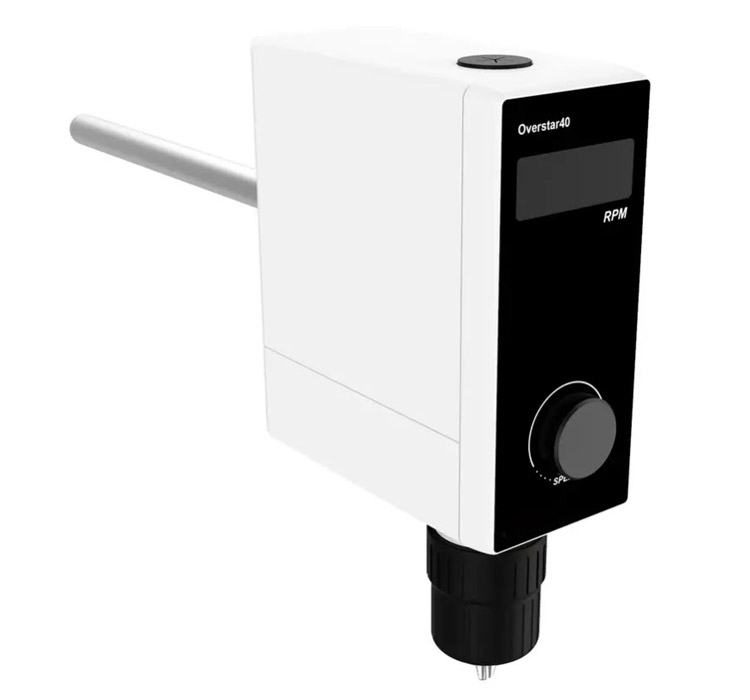

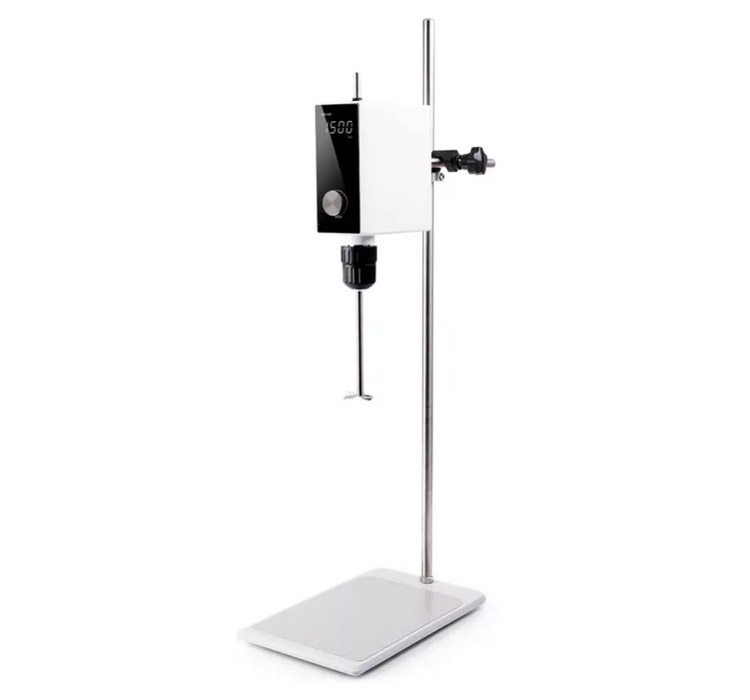

40L LED Digital Overhead Stirrer

The Pinnacle PC-40D Laboratory Stirrer is a robust and dependable solution for all your laboratory mixing needs. It’s a high-performing device with a maximum torque of 40 N·cm and a versatile speed range of 50-2000 rpm. This allows it to manage a maximum stirring volume of up to 40L.


Key Features:

  • Maximum Torque: With a maximum torque of 40 N·cm, it provides powerful stirring for your laboratory needs.
  • Speed Range: The versatile speed range of 50-2000 rpm ensures it can handle a variety of stirring tasks.
  • Maximum Stirring Quantity: It can handle a maximum stirring quantity of 40L, making it suitable for large-scale operations.
  • LED Speed Display: The LED speed display allows for precise control and monitoring of the stirring speed.
  • Overload and Motor Protection: These features ensure safe operation and prolong the stirrer’s lifespan.
  • Compact and Lightweight Design: Its compact and lightweight design makes it easy to use and store.
  • Chuck Diameter Range: With a chuck diameter range of 0.5-10mm, it’s adaptable for various stirring needs.
  • Protection Class and Ambient Temperature: With a protection class of IP42 and a permissible ambient temperature range of 5-40°C, the Pinnacle PC-40D Laboratory Stirrer is built to endure varying conditions.

NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information

Model

OHS-40D

Max. torque [N·cm]

40

Speed Range [rpm]

50-2000

Viscosity Max. [mPas]

50,000

Chuck Diameter Range [mm]

0.5-10

Max. Stirring Quantity (H20)[L]

40

Voltage [V]

100-240

Frequency [Hz]

50/60

Power [W]

65

Speed Display

LED

Overload Protection

YES

Motor Protection

YES

Dimensions (D×W×H)[mm]

71×160×192

Weight [kg]

2.5kg

Protection class according to DIN EN60529

IP42

Permissible ambient temperature [°C]

5-40

Permissible relative humidity [%]

80

  • Speed Range: 50rpm~2000rpm
  • Provides constant speed even with changes in viscosities of the sample
  • Wide LED display for precise speed adjustment and monitoring
  • LED display shows actual and set speeds alternately
