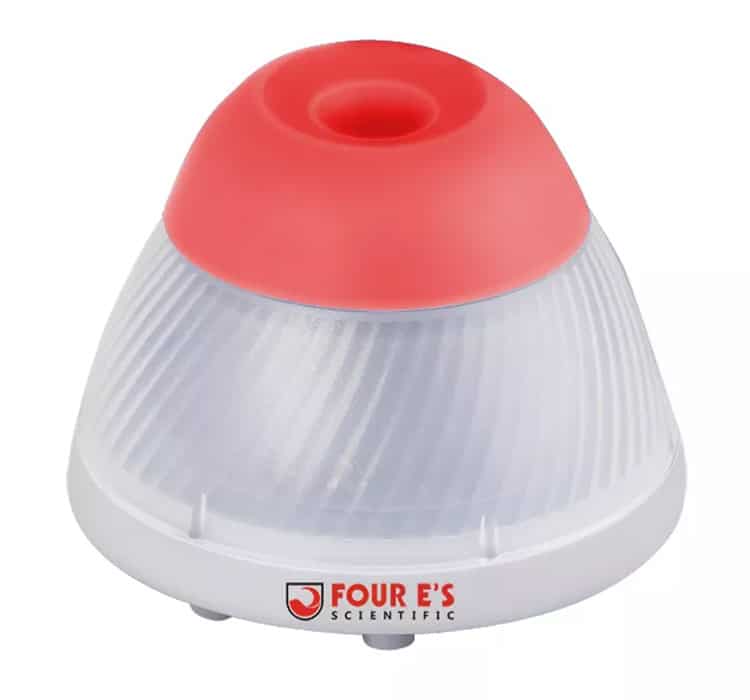

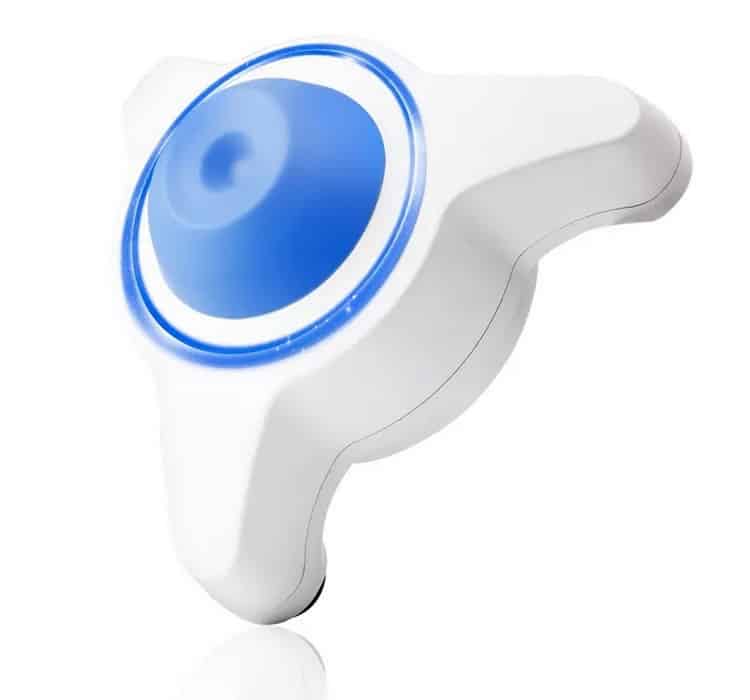

Mini Vortex Mixer 3000 rpm

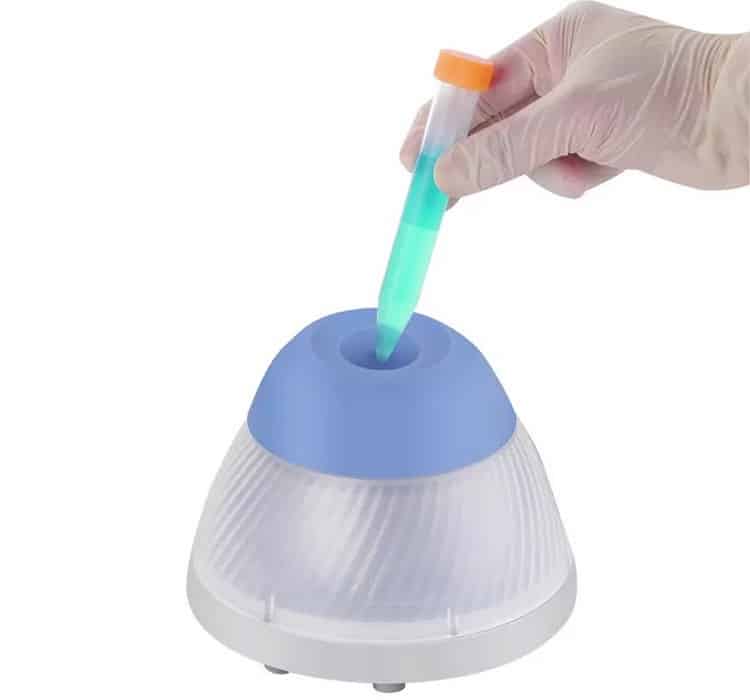

The Pinnacle Orbital Shaker is a compact and lightweight laboratory tool that excels in efficiency. It offers a fixed speed of 3000 rpm and an orbital diameter of 6mm, allowing it to mix full 50ml containers swiftly in just 5 seconds. This top-tier lab equipment features a touch function and a patented foot pad design for enhanced usability.
Operating at a low voltage of 12V, the Pinnacle Orbital Shaker ensures safety and protection, backed by multiple certifications. This makes it an ideal choice for laboratories with space constraints. If you’re a researcher seeking superior mixing capability, this orbital shaker is a must-have tool for your lab.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Rated Voltage [VAC] | 100-240 |
|---|---|
| Rated Frequency [Hz] | 50-60 |
| Output voltage [VDC] | 12 |
| Output power [W] | 7.2 |
| Speed [rpm] | 3000 |
| Operating Time [%] | 100 |
| Protection Class | II |
| Pollution Degree | 2 |
| Overvoltage Category | II |
| EN 60529 Protection Class | IP42 |
| Permissible Relative Ambient Humidity [%] | 80 |
| Permissible Ambient temperature [°C] | 5-40 |
| Weight [kg] | 0.55 |
| Test Tube Size [mm] | Φ30 |

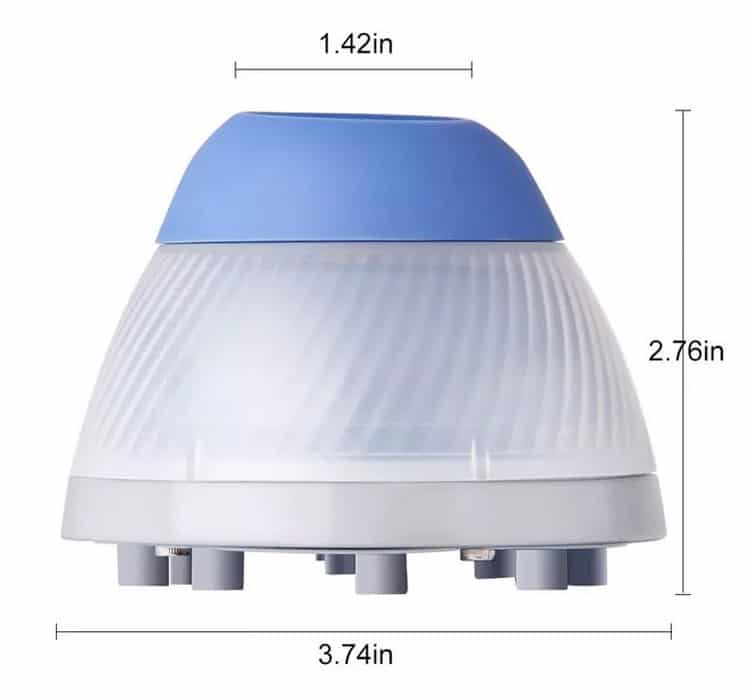

| Dimensions | (Φ x H) [mm]: 100 x 78 |
| Type of Movement | Orbital |
| Orbital Diameter [mm] | 6 |
| Touch Function | Yes |
- Touch function
- Fixed speed of 3000rpm
- Orbital diameter of 6mm

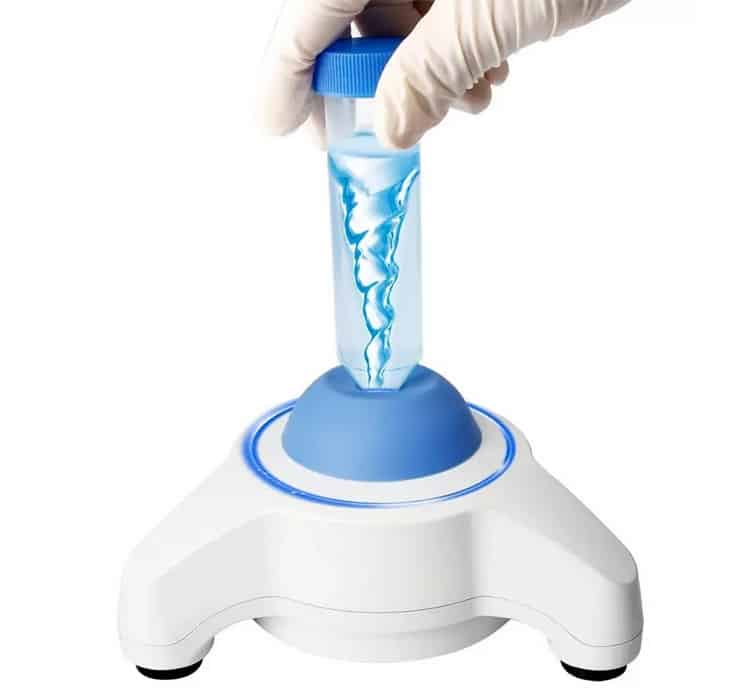

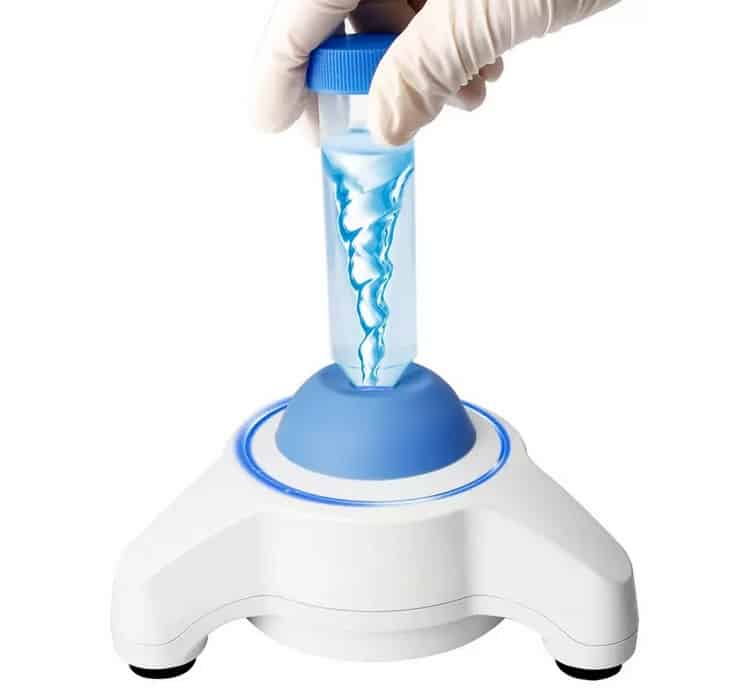

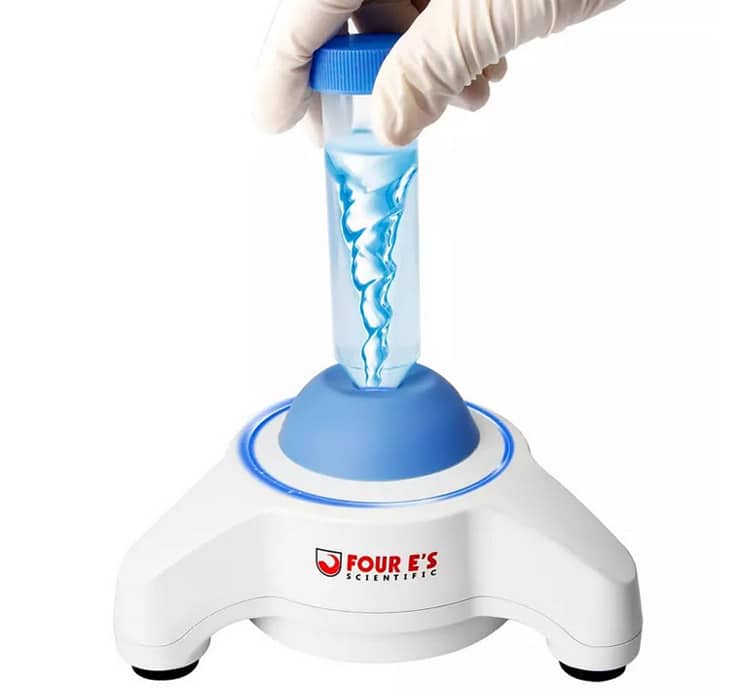

- Excellent mixing capability can make full 50ml containers mix within 5 seconds

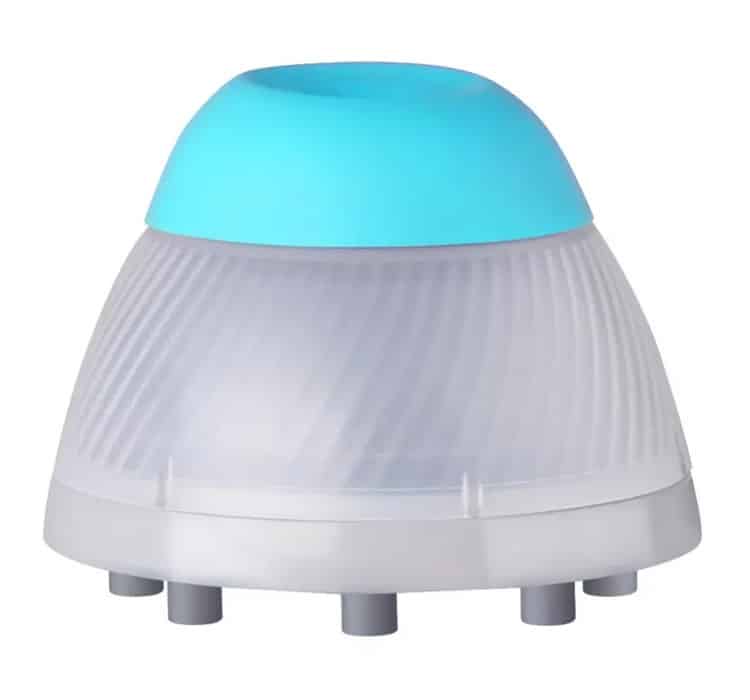

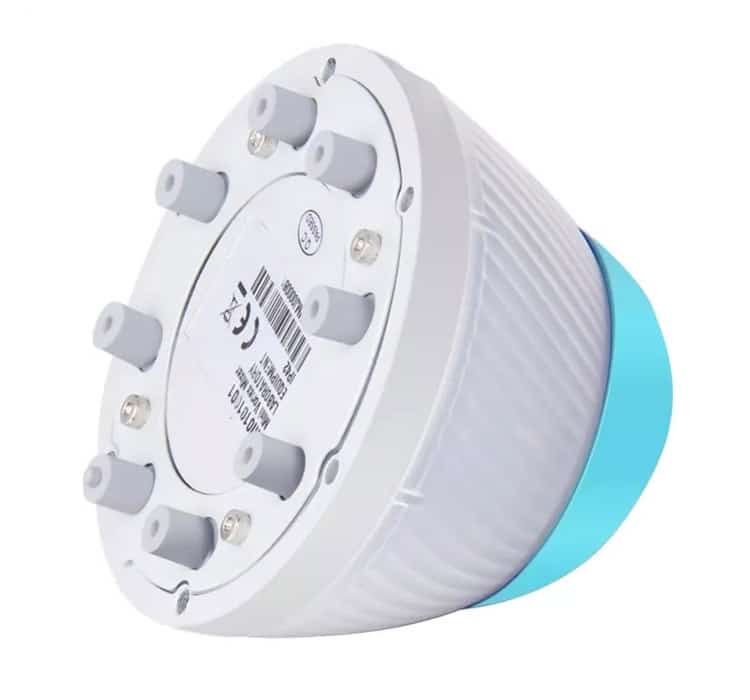

- Patented foot pad design can hold the vortex mixer firmly in place when mixing
- Low operation voltage (12V) for full protection
- Power supply is CE, cULus, CCC, SAA and FCC certified
