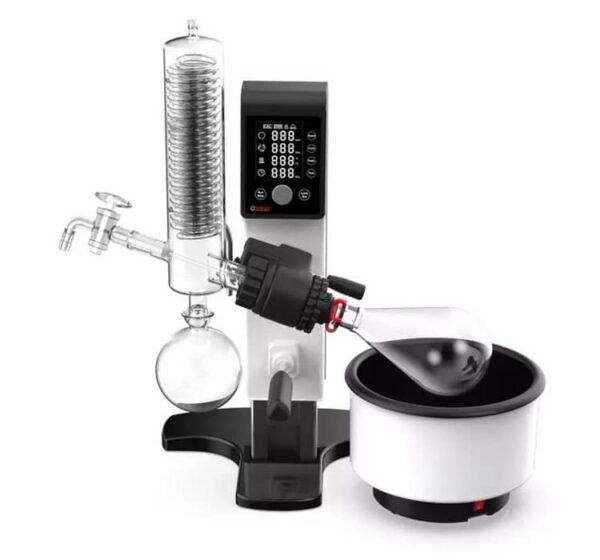

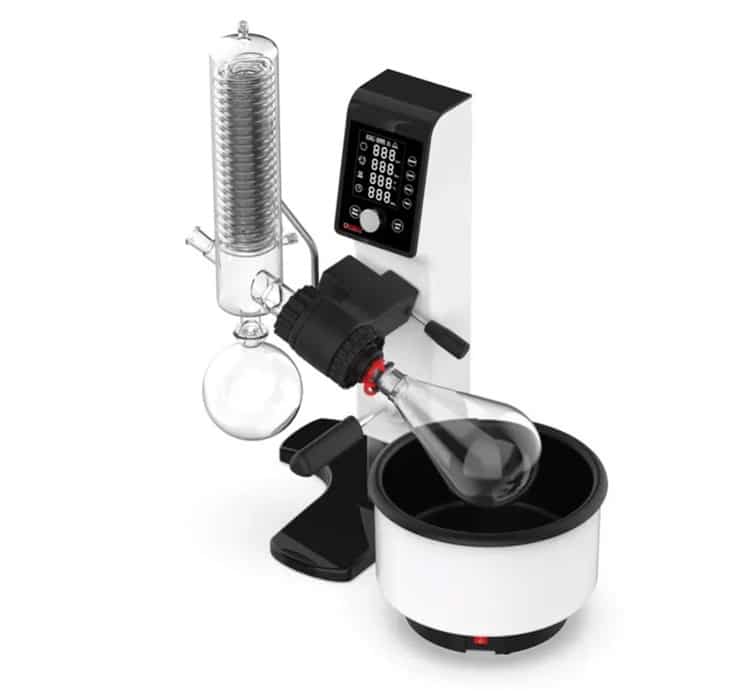

Pinnacle’s PC131 Rotary Evaporator

The Pinnacle PC131 laboratory equipment, the perfect addition to any lab. With a brushless DC motor and stepless speed control ranging from 20-320 RPM, this equipment offers precise control and flexibility. The heating power of 1300W and temperature range of room temp.+5℃~90℃(Water),Room temp.+5℃~180℃(Oil) make it ideal for a variety of applications. Other features include LED display, overload protection, and automatic shut off to prevent over-temperature. The compact design of the main unit at 400*320*540mm makes it easy to fit into any laboratory.

NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information



Input Voltage, Frequency

AC 100V-240V,50/60Hz

Motor Type

Brushless DC Motor

Max. Input Power of - Main Unit [W]


Heating Power [W]


Temperature Range [℃]

Room temp.+5℃~90℃(Water), Room temp.+5℃~180℃(Oil)

Control Accuracy [℃]

Water±1.5℃, Oil ±3℃

Rotation Speed [rpm]

20 – 320 RPM

Speed Control/Increment[rpm]

Step less speed Control. Increment: 1RPM

Clockwise and Anti-clockwise


Rotation Time Interval

5-999 s

Time Setting Range

1-999 min

Tilt Angle of Evaporation flask


Lifting Method


Stroke Displacement [mm]


Vacuum Degree

Max. 4mbar(3mmHg)

Heating Bath Capacity




[DIN_EN60529] Protection Class


Overload Protection


Over-temperature Protection

When the temperature of PT1000 temperature sensor is 5℃ more than the set temperature, the heating automatically shuts off

Permissible Ambient Temperature


Permissible Relative Humility



Main Unit: 400*320*540mm/ Heating Bath: 300*300*205mm

Weight (without glassware) [kg]

Main Unit: 8.6KG; Heating Bath: 3KG

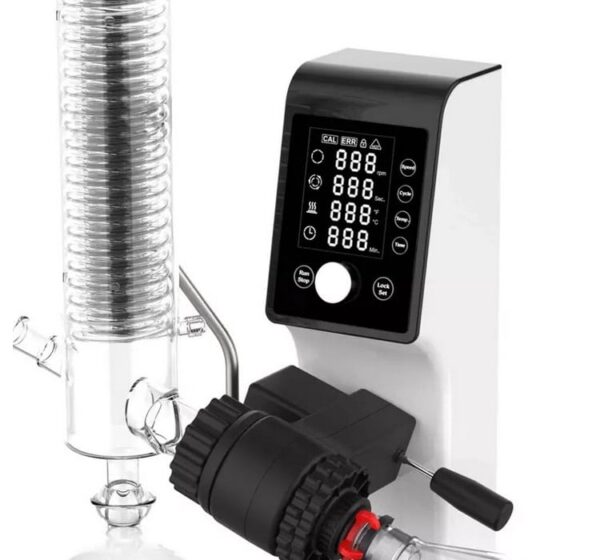

  • Large LED display to easily set and monitor process parameters

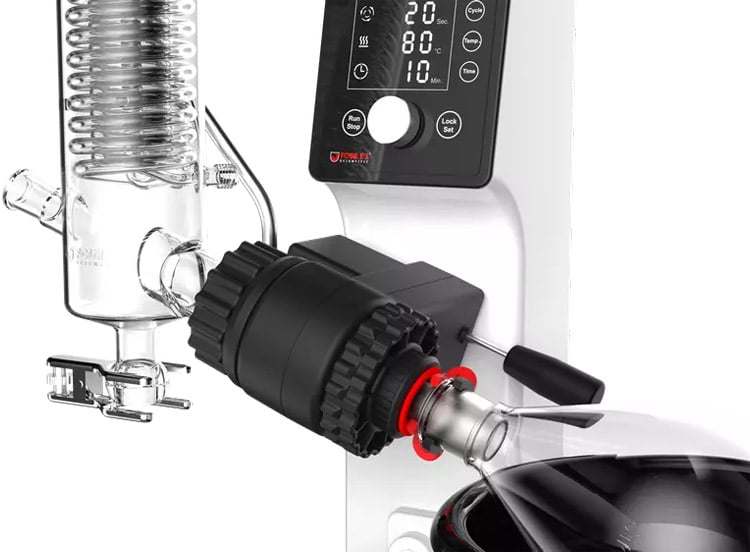

  • The touch keys and adjustable knob let you easily set the Rotation speed, heating temperature, operation time, and cycle times (clockwise and/or counterclockwise cycles).
  • The device also comes with a mistouch prevention lock to avoid changes through accidental touch
  • The adjustment knob can be turned fast or slow to change parameters rapidly or accurately.
  • The 5L water-oil heating bath with heating temperature range of up to 180℃ (oil)
  • The device comes with a Brushless DC motor with rotation speeds ranging from 20 to 320 rpm
  • Comes with PID temperature controller, overheat protection, dry-burning protection, and automatic power-off functions
  • Double-layer vertical condenser with 1500cm² cooling surface for efficient vapor collection and sample recovery

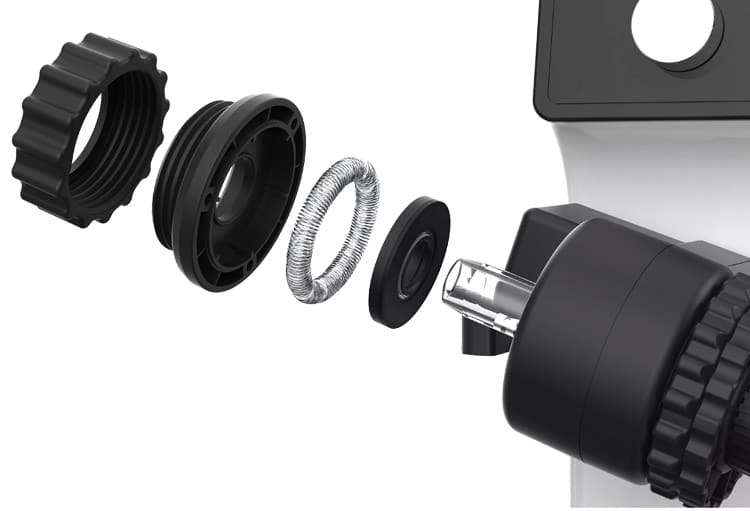

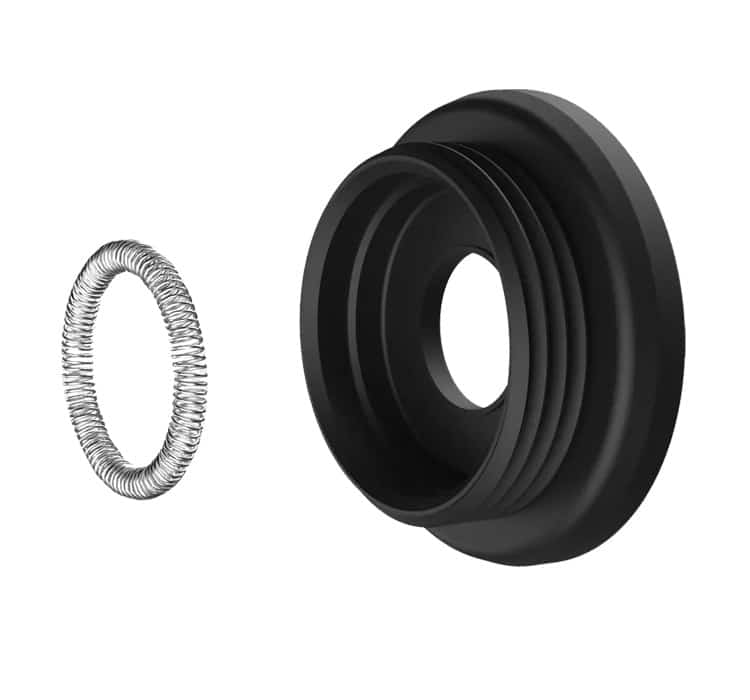

  • High elastic graphite filled PTFE seal and compression spring bring excellent sealing as well as high-temperature, corrosion, and abrasion resistances.
  • Manual lift for precise positioning of the glassware; the lifting height ranges up to 180mm and the tilt angle range is 0-360° (evaporation flask can be positioned on the left or right side)
  • Ejection mechanism ensures easy removal of evaporating flask
