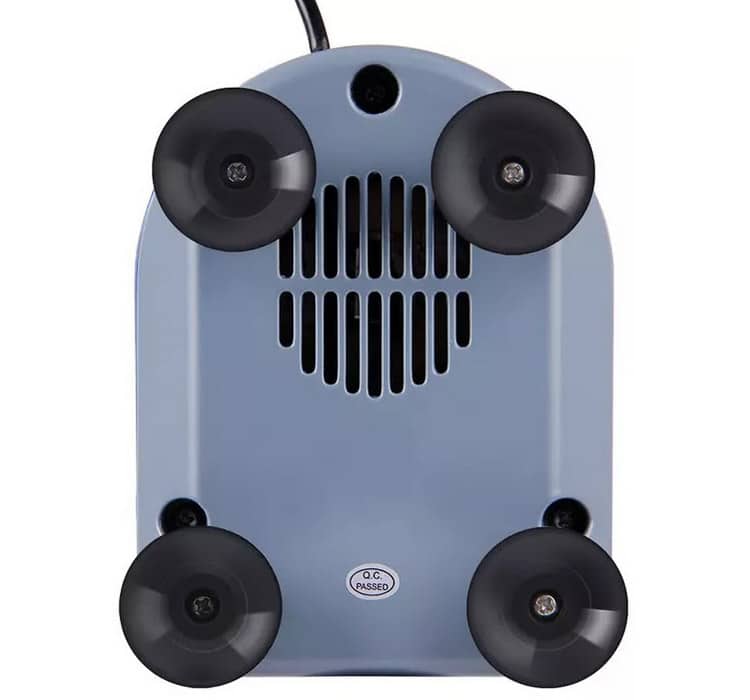

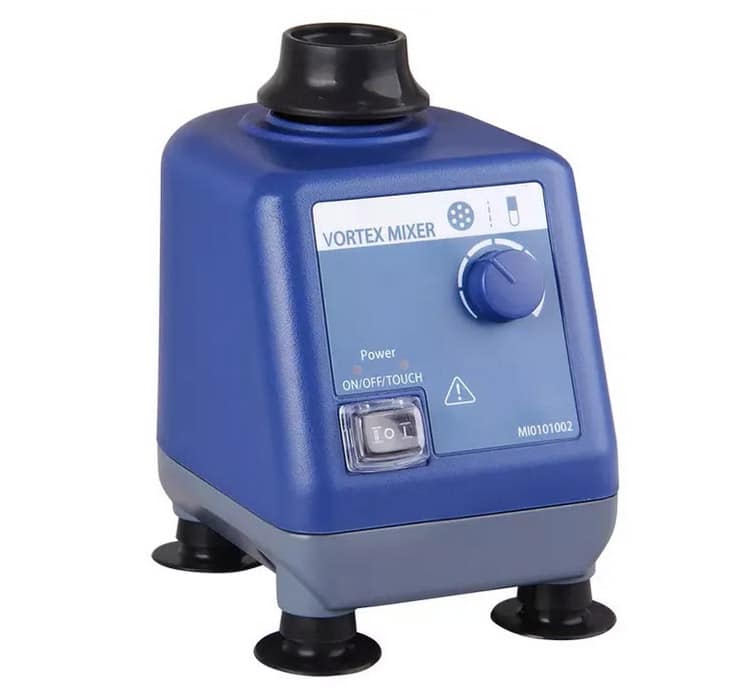

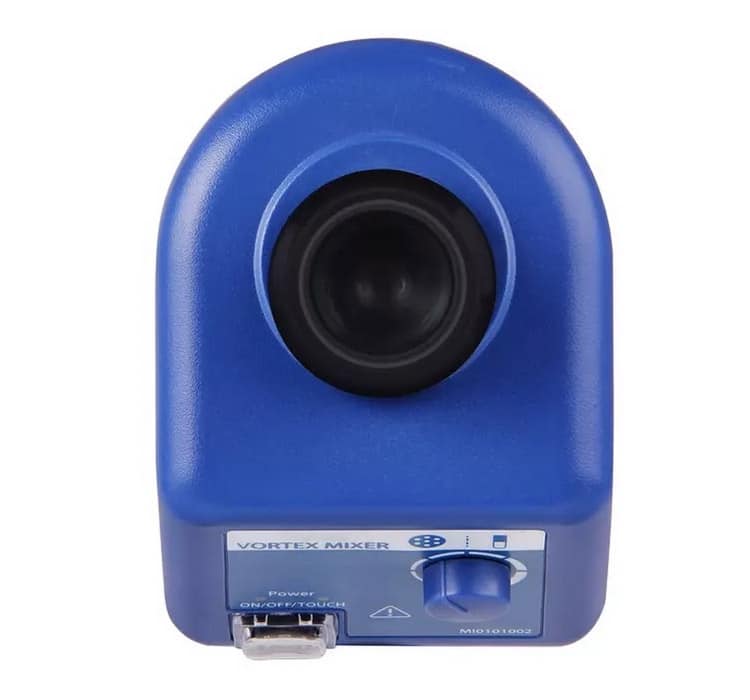

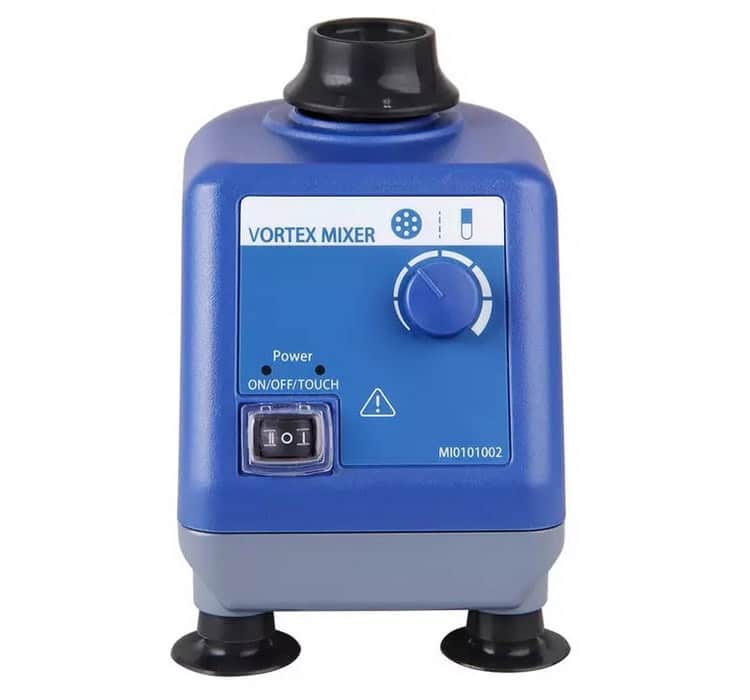

Mini Vortex Mixer 5600 rpm
The Pinnacle Orbital Shaker is an essential addition to any laboratory, offering efficient mixing solutions. Its features include:
- A fixed speed of 5600rpm, ensuring effective and efficient mixing.
- An orbital diameter of 6mm, providing optimal mixing capability.
- Compatibility with voltage ranges of 100-240VAC, making it adaptable to various power sources.
- A power consumption of just 9W, ensuring energy efficiency.
- An IP41 rating, indicating its ability to withstand dust and water splashes.
- Compact dimensions of 168x150x85mm, making it easy to store and use in any laboratory space.
- A touch function for easy operation.
- A built-in light that activates when in use, enhancing visibility and safety.
These features make the Pinnacle Orbital Shaker a must-have for any laboratory seeking a reliable and efficient mixing solution.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Type of Movement | Orbital |
|---|---|
| Orbital Diameter[mm] | 6 |
| Speed [rpm] | 5600 |
| Voltage [VAC] | 100-240 |
| Frequency [Hz] | 50/60 |
| Output Voltage [VDC] | 15 |
| Output power [W] | 9 |
| Permissible Ambient Temperature[] | 5-40 |
| Permissible Relative Humidity | 80% |
| Protection Class acc. to DIN EN60529 | IP41 |
| Dimension [L x W x H,mm] | 168x150x85 |
| Weight [kg] | 1 |
- Touch function
- Fixed speed of 5600rpm
- Orbital diameter of 6mm
- Excellent mixing capability can be guaranteed
- Built-in light will be on when working
- New design
