Mini Magnetic Stirrer

The Pinnacle Laboratory Stirrer is a robust and dependable tool, ideal for any laboratory environment. This compact and user-friendly stirrer weighs only 0.35kg, making it a lightweight yet powerful addition to your lab equipment.


Key Features:

  • Speed Range: The stirrer offers a wide speed range from 15-1500rpm, capable of tackling even the most demanding tasks.
  • Stirred Quantity: It can handle a maximum stirred quantity of up to 800ml, ensuring efficient operation.
  • Protection Level: With an IP65 rating, the stirrer provides high-level protection against dust and water, making it a reliable choice for any lab.
  • Reverse Rotation: The automatic reverse rotation feature ensures superior mixing performance, enhancing the efficiency of your lab work.
  • Durability: Constructed from chemically resistant materials, the set-up plate and casing are designed to withstand rigorous use and last for a long time.
  • Stable Stand: The stirrer comes with a slip-proof and stable stand, ensuring safe and secure operation.

Incorporating these key features, the Pinnacle Laboratory Stirrer is an excellent choice for any lab, providing reliable and efficient performance.

NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information

Rated Voltage [VAC]

100-240

Rated Frequency [Hz]

50-60

Output Voltage [VDC]

12

Output Power [W]

Min.3

Stirring Mechanism

Coil Drive

Speed Range [rpm]

15-1500

Stirred Quantity (max) [ml]

800

Operating Time [%]

100

Protection Class

II

Pollution Degree

2

Overvoltage Category

II

EN 60529 protection Class

IP65

Permissible Ambient Relative Humidity [%]

80

Permissible Ambient Temperature [°C]

5-40

Transport Temperature [°C]

-25 to +70

Storage temperature [°C]

-10 to +70

Material

Front membrane sheet Polyester

Weight [kg]

0.35

Installed Weight (max) [kg]

2

Set-up surface [mm]

Φ100

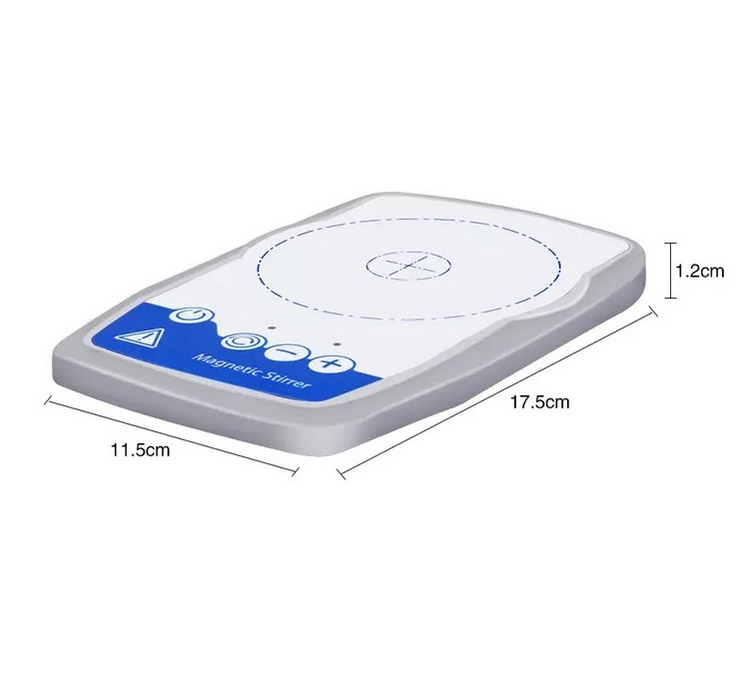

Dimensions (W x D x H) [mm]

115x175x12

  • Speed range of 15-1500rpm
  • High IP protection class (IP 65)
  • Automatic reverse rotation for excellent mixing performance
  • Set-up plate and casing are made from chemically resistant materials
  • Slip-proof and stable stand
