Dry Bath Incubator (for 2 Blocks)
The Pinnacle laboratory equipment is a compact, versatile, and high-performance 2-block system with the following key features:
- Powerful Heat Output: It delivers a robust heat output of 250W, suitable for a variety of laboratory applications.
- Wide Temperature Range: The equipment operates within a temperature range of room temperature plus 5°C to 150°C, accommodating diverse lab requirements.
- LED Temperature Display: The LED display provides temperature readings with a resolution of 0.1K for precise monitoring.
- External Sensor Connection: The equipment allows the connection of an external temperature sensor for enhanced temperature control accuracy.
- Temperature Stability: The Pinnacle lab equipment ensures temperature stability of ±0.5°C, resulting in consistent and reliable results.
- Uniformity: It maintains a uniformity of 0.5K, ensuring consistent heat distribution.
- Timer Function: The equipment includes a timer with a range of 1 minute to 99 hours and 59 minutes, making it adaptable for long-term experiments or processes.
- Safety Features: The system comes with a fixed safety circuit for enhanced safety during operation.
- Error Code Display: The error code display allows for easy troubleshooting and maintenance.
- Automatic Calibration: The equipment features automatic calibration with an external PT1000 temperature sensor, ensuring accurate readings and ease of use.
These features make the Pinnacle laboratory equipment an ideal choice for labs seeking precision, versatility, and reliability in their heating systems.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Number of Blocks | 2 |
|---|---|
| Heat Output [W] | 250 |
| Heating temperature range [°C] | Room Temp.+5°C-150°C |
| Temperature Display | LED |
| Adjustment and Display Resolution [K] | 0.1 |
| Connection for Ext. Temperature Sensor | DIN 12 878 |
| PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
| Temperature stability within the blocks > 60°C * [±°C] | ±1 |
| Temperature Uniformity > 60°C * [K] | 0.5 |
| Heating rate / Heat up time with external sensor * [K/min] | 4.5 |
| Set-up Plate Material | Aluminum alloy |
| Set-up Plate Dimensions [mm] | 96×152 |
| Fixed safety circuit [°C] | 180 |
| Timer | √ |
| Time Setting Range | 1min – 99h59min |

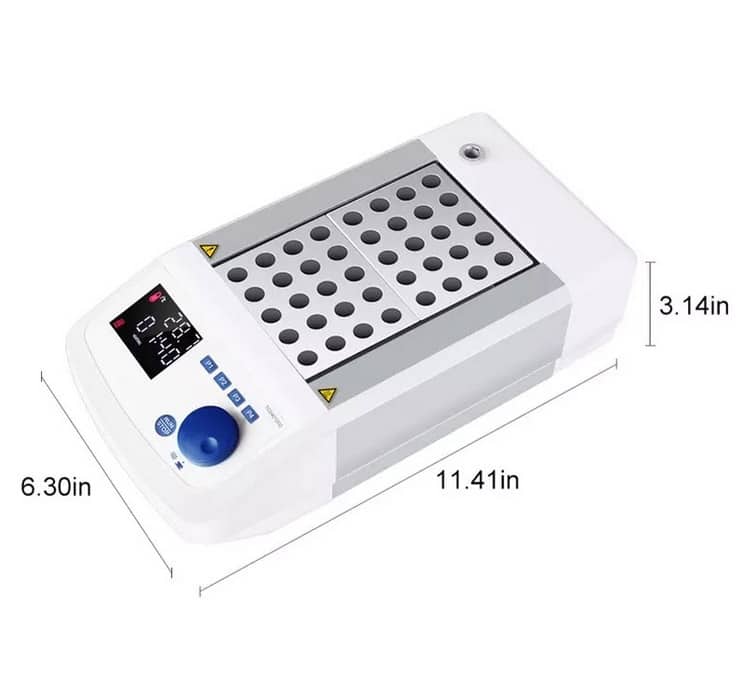

| Dimensions (W x H x D) [mm] | 152 x 86 x 300 |
| Weight [kg] | 2.5 |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity | 80% |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage [V] | 200-240/115 |
| Frequency [Hz] | 50/60 |
| Power Input [W] | 250 |

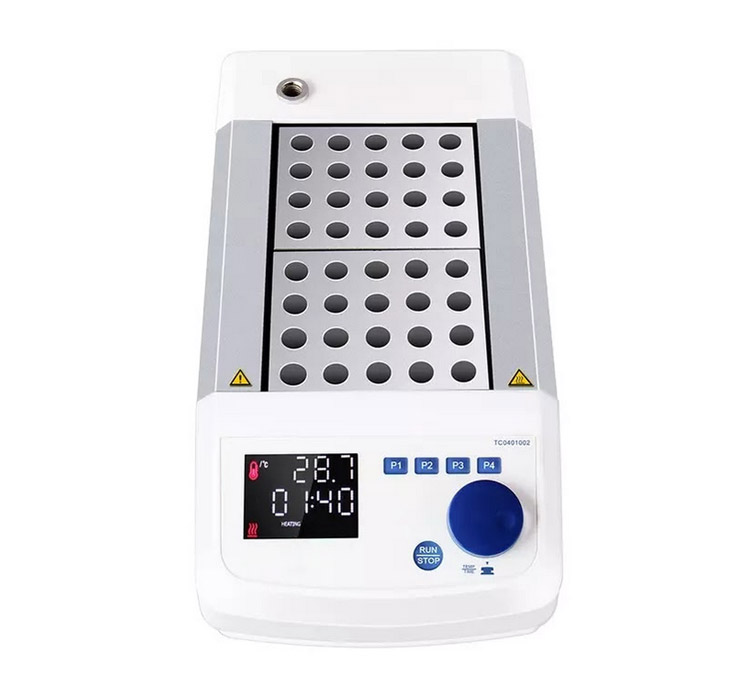

- LED display for easy reading
- 3D digital wheel adjustment of Time and temperature
- Adjustable temperature is up to 150°C
- High temperature stability is up to ±0.2°C
- Machined aluminum heating unit allows for highly precise control of temperature

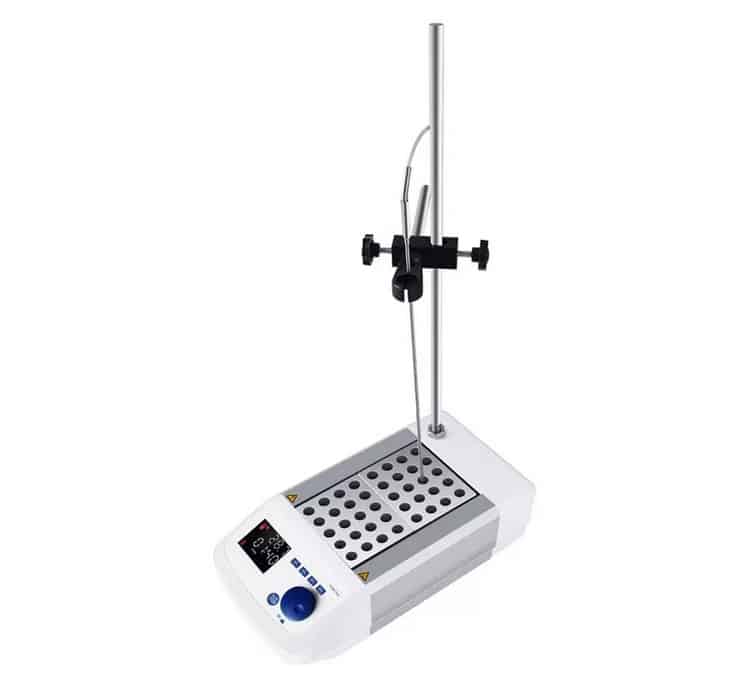

- Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
- Adjustable timing range of 1min to 99h59min
- Fixed safety circuit
- Error code display
- Various applications with different blocks
- Automatic calibration with external PT1000 temperature sensor
