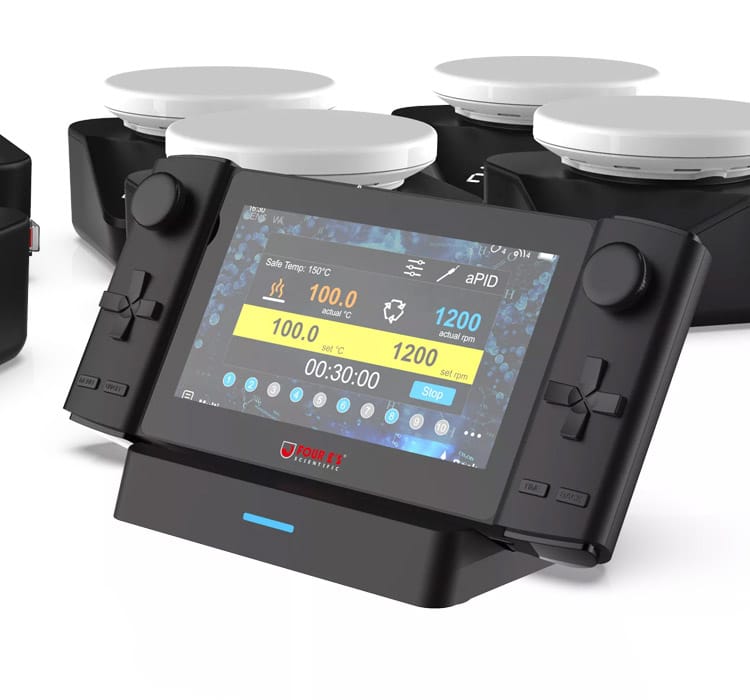

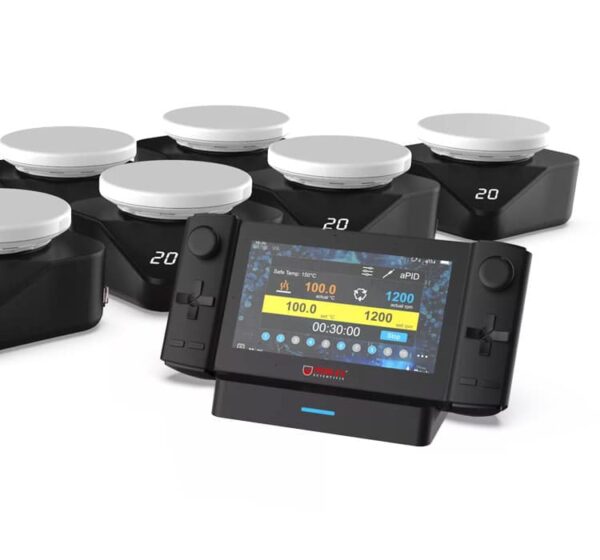

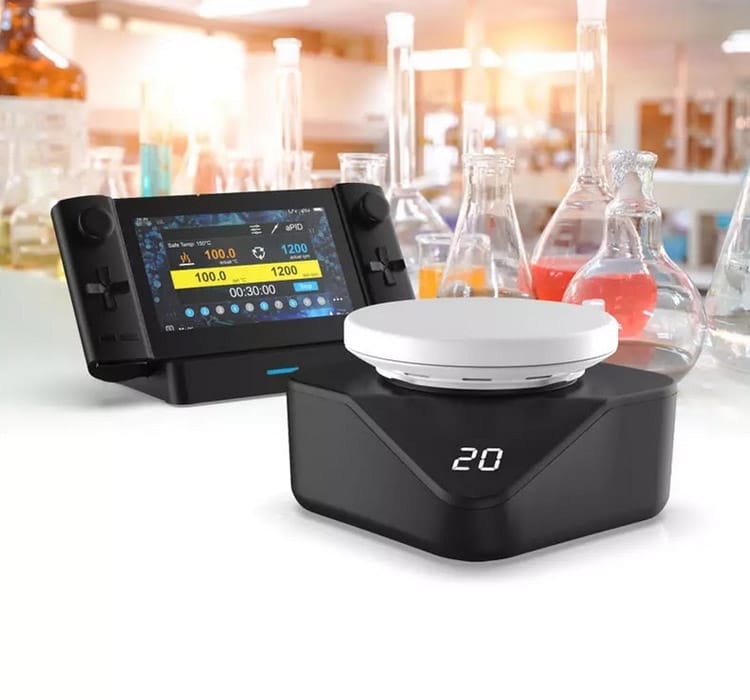

5″ Multi Magnetic Hotplate Stirrers With Hub Control
Pinnacle’s Magnetic Hotplate Stirrer, model PC321, is an essential addition to modern laboratories. With its precise temperature range from room temperature to 310°C and a speed range of 50-1500RPM, it’s designed for diverse experimental needs. The stirrer can handle a maximum stirring quantity of 20L, ensuring versatility for various applications.
Key Features:
- Safety First: Safety temperature range of 50°C to 325°C.
- Connectivity: USB interface for data transfer and Bluetooth capabilities for seamless control.
- Durable Design: Ceramic-coated heating plate ensures longevity and resistance to high temperatures.
- Hub Controller: Equipped with a 7-inch touch screen display, rechargeable battery, and intuitive controls for easy operation.
- Charging Stand: Designed for efficient charging of multiple stirrers.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Model | MS321 |
|---|---|
| Set-up Plate Material | Aluminium Alloy with Ceramic Coating |
| Set-up Plate Dimensions | Φ5 inches |
| Heating Temperature Range | Room temp. to 310°C |
| Speed Range | 50-1500RPM |
| Safety Temperature | 50°C to 325°C |
| Speed Control Accuracy | ±1RPM |
| Temperature Control Accuracy | ±1°C |
| USB Interface | Yes |
| Time Range | 99H59min |
| Number of Magnetic Hotplate Stirrer Wired Connections | 6 |
| Wireless Connections | No limit |
| Motor Input | 24V, 30W |
| Motor | Brushless DC motor |
| External Temperature Sensor | Yes |
| Max. Stirring Quantity | (H₂O) 20L |
| Power Supply | 200-240/100-120 VAC; 50/60Hz |
| Stirring Bar | 55MM |
| Power Switch | Yes |
| Dimension | 166x166x106mm |
| HUB CONTROLLER |
|
| Display | 7-inch touch screen |
| Rechargeable Battery | Lithium polymer battery: 7.4V |
| Charging Time | 3 hrs |
| Alarm | Buzzer |
| Battery Capacity | 5000mAh |
| Battery Life | 8H |
| Main Controller Dimension | 263x126x40mm |
| CHARGING STAND |
|
| Power Input | 200-240/100-120 VAC; 50/60Hz |
| Interface | 6 x USB 1.1 interface |
| Power Input Interface | DC Port |
| Wireless | 2.4G Wireless |
| USB Cable | 2-meter cable x 6 |
| Bluetooth | Yes |
| Wireless Effective Connection Distance | 10m |

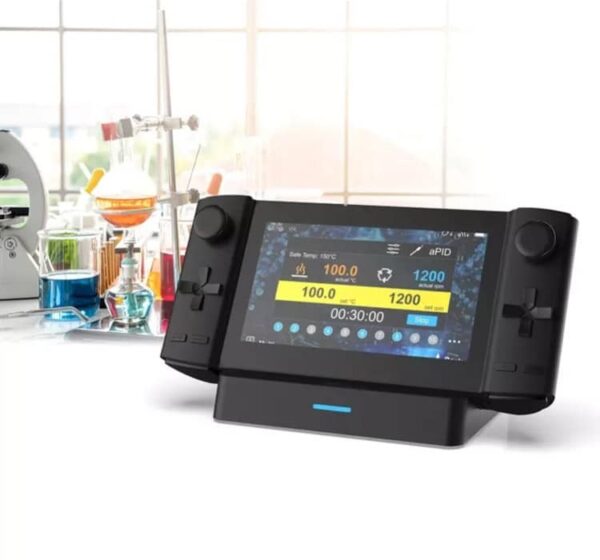

- The hub controller comes with a 7-inch, high resolution LCD touch screen
- Temperature, Speed and Run Time for each magnetic hotplate stirrer can be set and adjusted by using the hub controller
- Bluetooth, 2.4G wireless and wired USB connectivity options allow real-time data transmission and precise control
- Large capacity 5000mAh battery supports long-term working
- The maximum hotplate temperature is up to 310°C, and the safety temperature range is 50°C-320°C
- PID controller ensures rapid heating and accurate temperature control
- The ceramic coated heating plate is resistant to high temperature, chemical corrosion and is easy to clean
- Brushless DC motor is maintenance free and explosion proof
- Automatically identify external temperature sensor PT1000 and transfer to PT1000 operation mode
- LED display on the hotplate stirrer displays equipment tracking number for easy identification, speed, and temperature
- The controller adopts magnetic charging, which is convenient and fast
