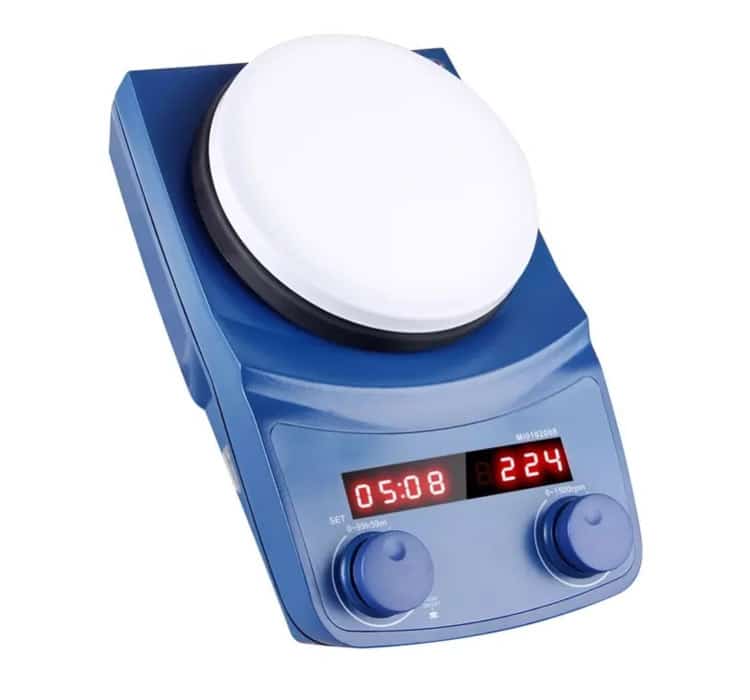

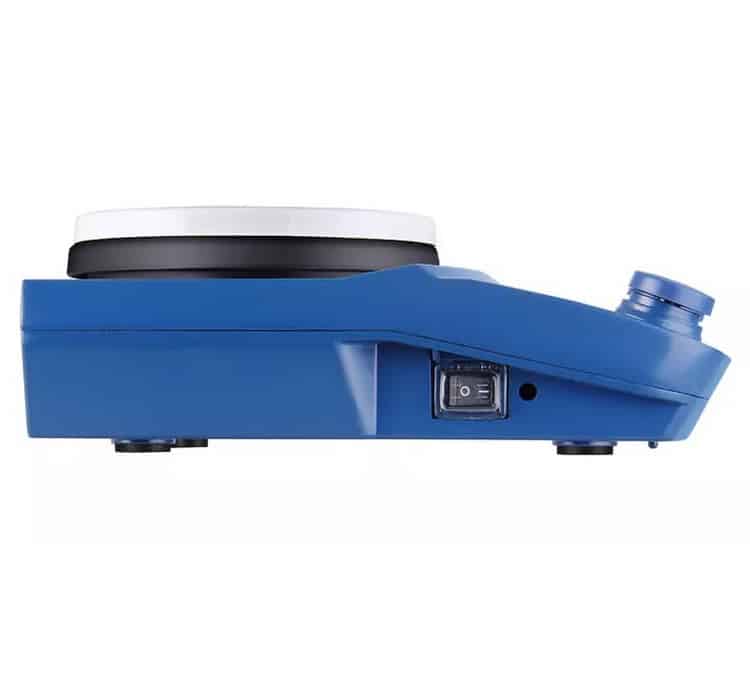

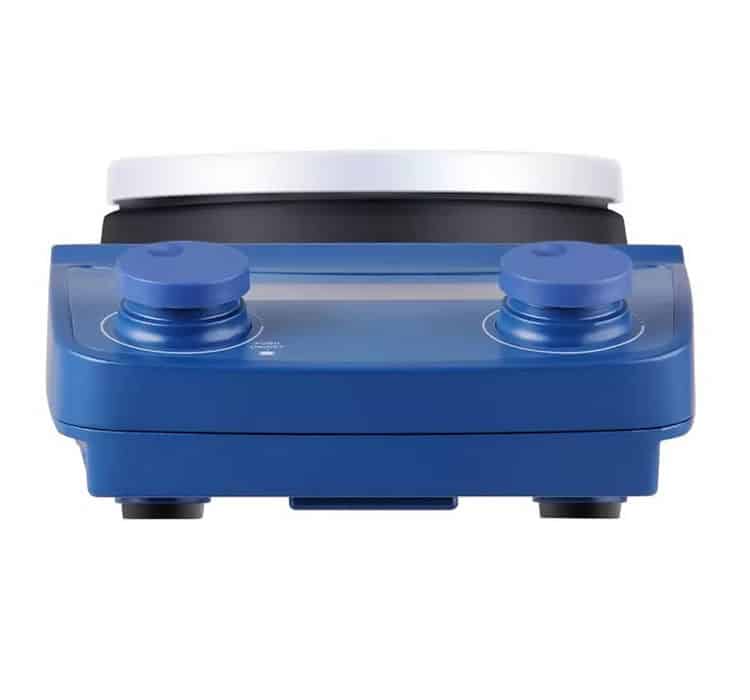

5 Inch LED Digital Magnetic Stirrer
The Pinnacle Laboratory Stirrer is a versatile and precise piece of lab equipment that can greatly enhance your lab’s stirring capabilities.
Key features:
- Powerful Performance: Equipped with a brushless DC motor, it offers a speed range of 100-1500rpm, ensuring efficient and precise stirring.
- High Capacity: It can handle a maximum stirring quantity of 20L, making it suitable for a wide range of lab applications.
- Durable Construction: The stirrer features a stainless steel set-up plate with a ceramic coating for enhanced durability and longevity.
- Precise Control: The LED speed and time display allows for accurate control over the stirring process. It has a time range of 1min-99h59min.
- Lightweight: Weighing only 1.7kg, it is easy to move and set up in different parts of the lab.
- Protection Class: It boasts a protection class of IP42, ensuring it can withstand various lab conditions.
Invest in the Pinnacle Laboratory Stirrer to elevate your lab’s stirring capabilities and achieve accurate results every time.
NOTE: Institutional & Contract Discounts Available - Enquire For Pricing
Additional information
| Stirring Positions | 1 |
|---|---|
| Set-up Plate Dimensions [mm] | Ø 135 |
| Set-up Plate Material | Stainless Steel with ceramic coated |
| Motor Type | Brushless DC motor |
| Max. Stirring Quantity [H₂O, L] | 20 |
| Max. Stirring Bar [ L x Φ , mm] | 55*10 |
| Motor Rating Input [W] | 30 |
| Motor Rating Output [W] | 20 |
| Speed Range [rpm] | 100-1500 |

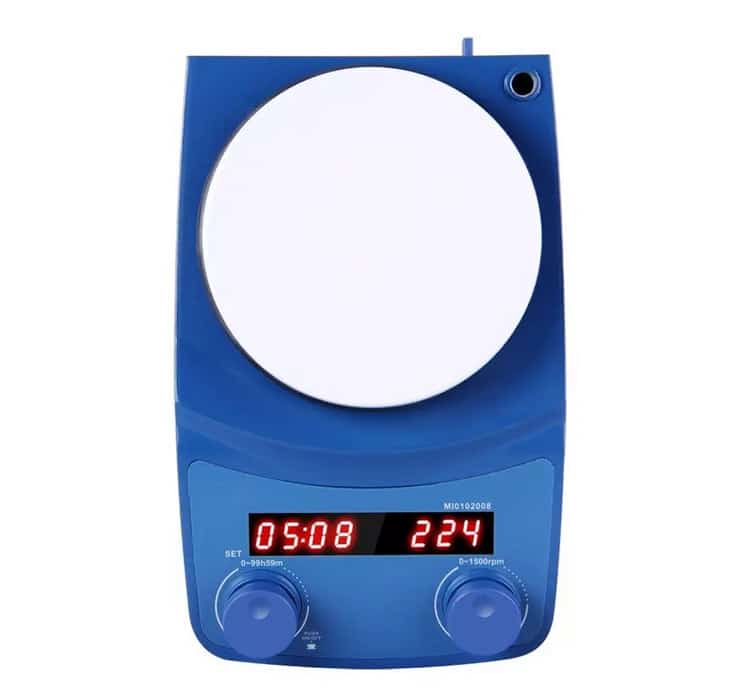

| Speed Display | LED |
| Time Display | LED |
| Time Range | 1min – 99h59min |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP42 |
| Voltage [VAC] | 200-240/100-120 |
| Frequency [Hz] | 50/60 |
| Power [W] | 40 |

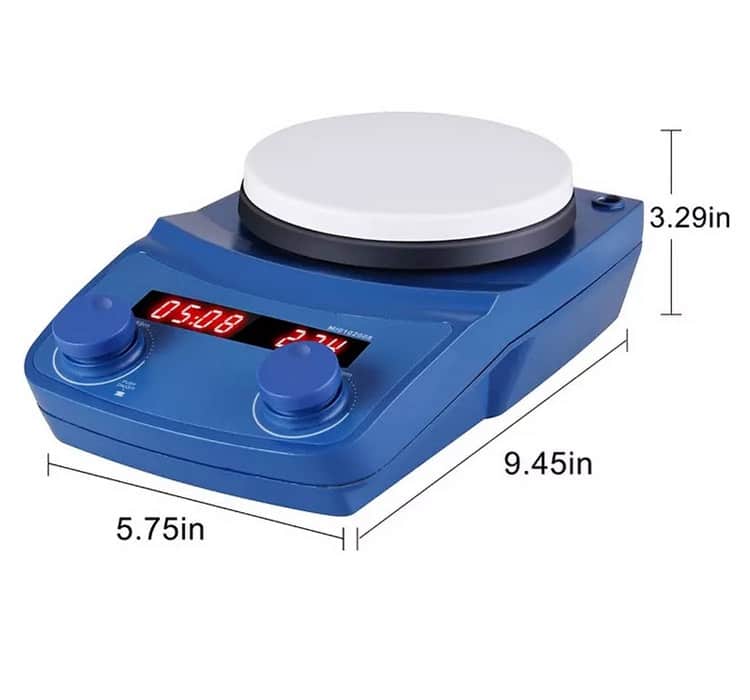

| Dimensions [W x D x H, mm] | 250 x 148 x 85 |
| Weight [kg] | 1.7 |
- Speed range is 50-1500rpm
- LED digital display for easy setting and reading
