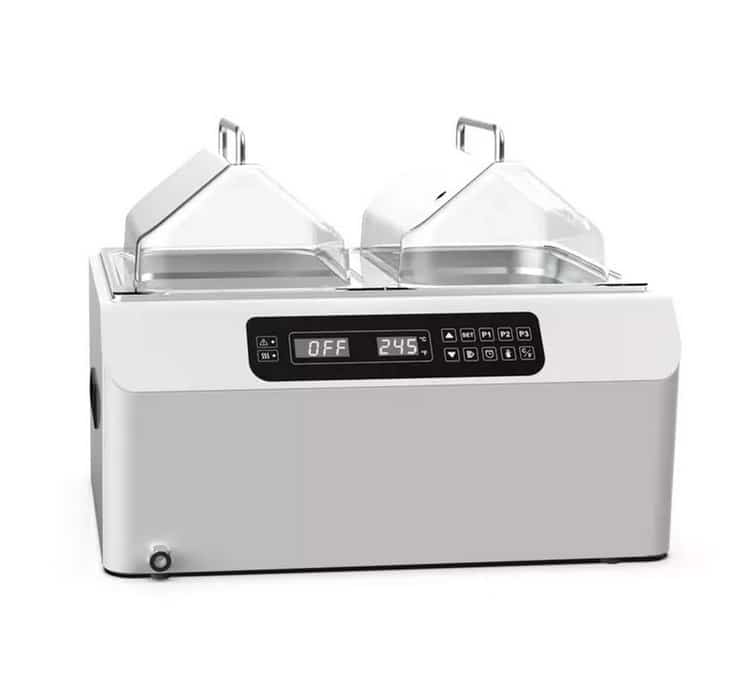

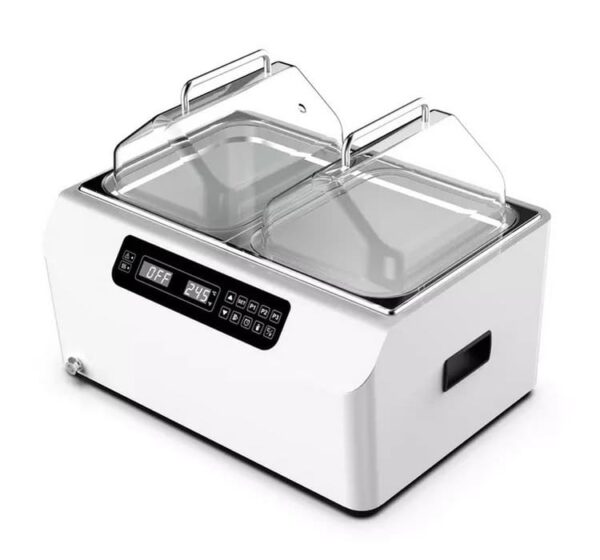

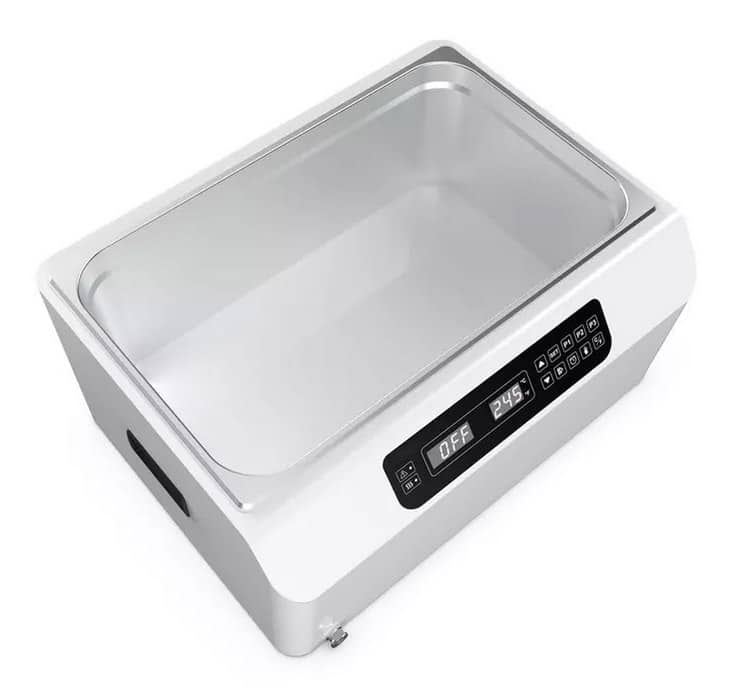

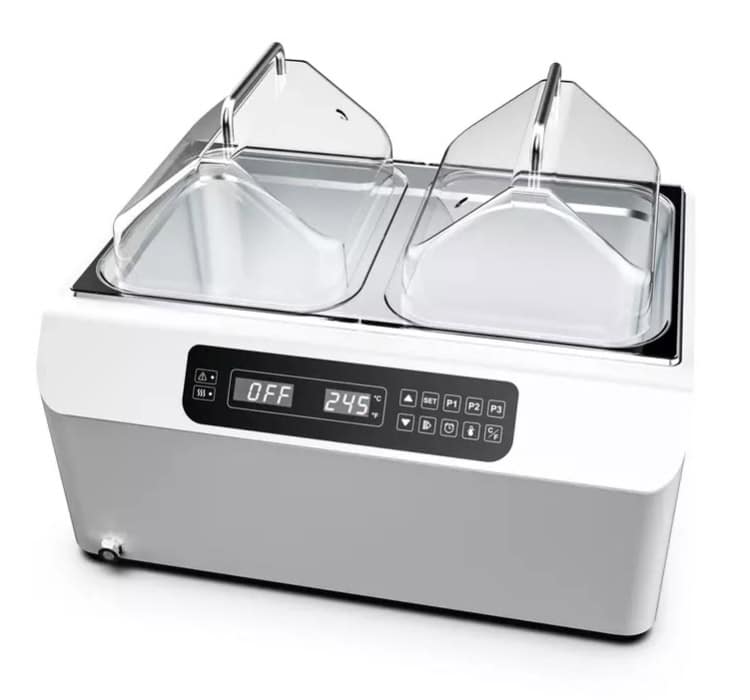

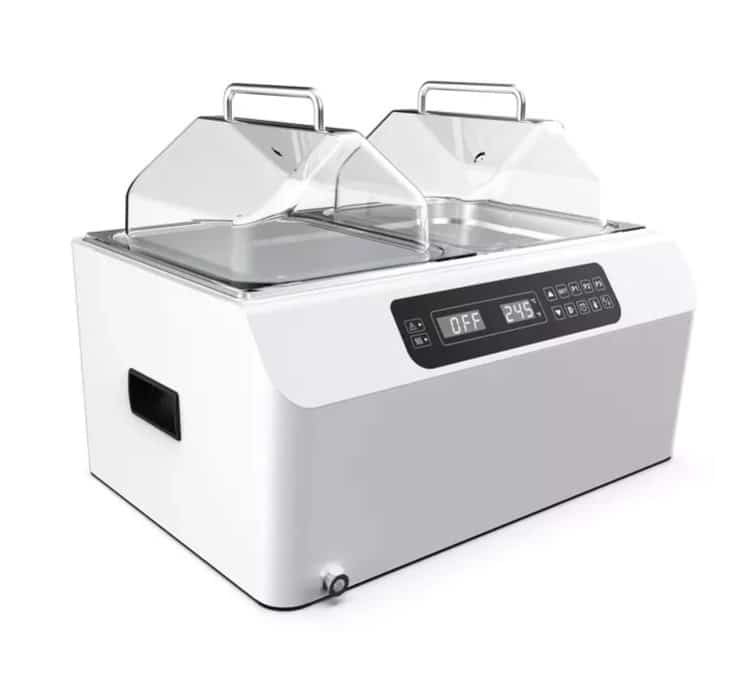

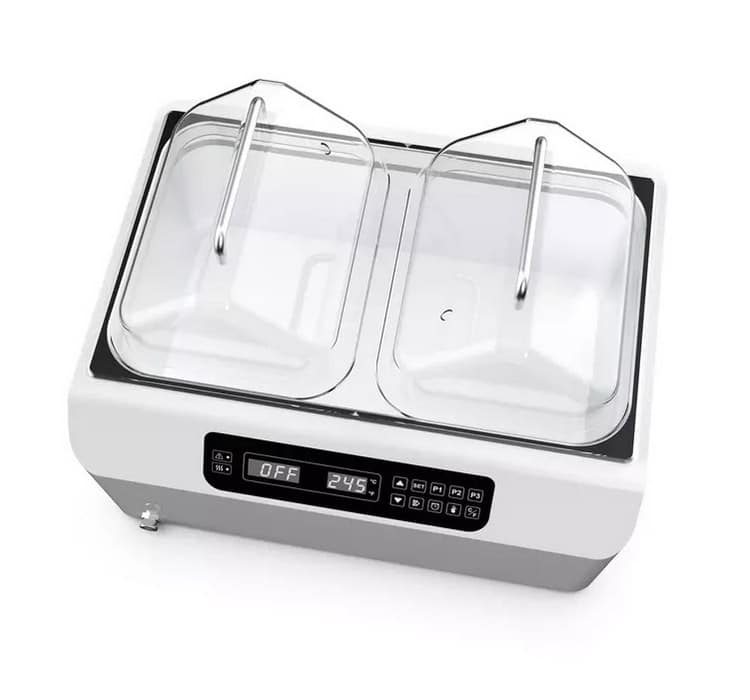

24L Water Bath

The Pinnacle PC401 24L Water Bath is an indispensable tool for contemporary laboratories. With its precise temperature range and advanced safety features, it ensures consistent and reliable results for a variety of applications.

Key Features:

  • Precise Temperature Control: Achieve a heating temperature range from room temperature +5℃ to 99.9℃ with a stability of ±0.3°C.
  • Advanced Display: Dual LED displays for simultaneous viewing of temperature and time settings, ranging from 0 to 99h59min.
  • Safety First: Equipped with over-temperature cut-off and dry-start protection to ensure safe operations.
  • Durable Design: The water bath chamber is constructed from stainless steel, preventing water leakage, corrosion, and chemical damage.
  • Compact & Lightweight: Weighing only 14.5kg, it’s designed for easy mobility and storage in the lab.


NOTE: Institutional & Contract Discounts Available - Enquire For Pricing

Additional information



Reservoir Capacity

24 L

Power Supply

AC100~120V/AC200~240V 50-60Hz



Heating Temperature Range

Room temp.+5℃-99.9℃ (under 101.325KPa)

Over Temperature Cut-off


Dry-start Protection


Temperature Stability

±0.3 °C

Temperature Display Accuracy

0.1 °C

Temperature Uniformity

±0.3 °C

Temperature Display


Time Display


Time Setting Range


Chamber Dimensions (L x W x D)

500 x 300 x 200mm

Dimensions (L x W x H)

560 x 414 x 426mm(incl. cover)



  • Double LED displays show time and temperature simultaneously
  • Adjustable temperature range is up to 99.9°C (101.325kPa)
  • Precise temperature control: accuracy of ±0.3°C
  • Dry-run protection and overheat protection by both software and hardware for more safety
  • Program mode can store up to 3 programs
  • Durable 304 stainless-steel chamber with no worry of water leakage or corrosion
  • Timed operation of 0-99H59min
  • Easy to switch temperature unit between Fahrenheit (°F) and Celsius (°C)
